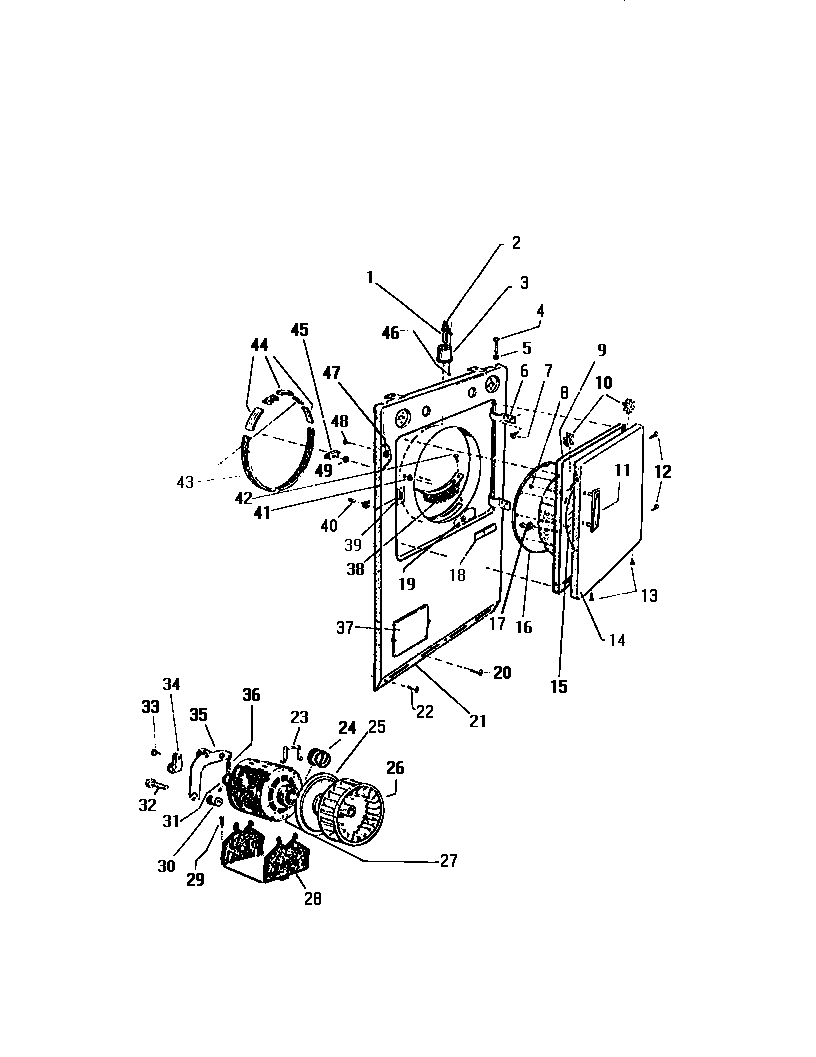

DG250EXF5 02 – FRONT PANEL, DOOR, MOTOR

Products

Position	Product
*57041	WCI Q15142
*57040	WCI Q15141
1	DOUBLE CONTACT BAYONET BASE 15W, 115/125V, CLEAR (BULB T
2	WCI Q128481
3	WCI Q182671
4	WCI Q55021
5	WCI Q500155
6	WCI Q94651
7	WCI Q500433
8	WCI Q503952
9	INNER DOOR PANEL, COFFEE
10	WCI Q631591
11	WCI Q151326
13	WCI Q411004
14	OUTER DOOR PANEL, COFFEE
15	SHIELD
16	WCI Q167701
17	WCI Q504552
18	WCI Q604442
21	WCI Q632677
22	WCI Q501687
23	WCI Q62206
24	WCI Q94715
25	WCI Q94948
26	WCI Q615901
27	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
27A	START SWITCH FOR Q616391 EMER.
27A	START SWITCH FOR Q615921 WW
27A	START SWITCH FOR Q616401 GE
28	WCI Q94874
29	SCREW
30	WCI Q600179
31A	SCREW
31	PULLEY (SEE NOTE 1)
32	WCI Q433401
33	WCI Q414002
34	CLAMP
35	IDLER PULLEY AND BRACKET
36	SPRING
37	ACCESS DOOR, COFFEE
38	WCI Q168541
39	WCI Q504551
40A	WCI 1466314
40	WCI Q502482
41	WCI Q501450
42	WCI Q405802
43	WCI Q142888
44	GUIDE KIT
45	SWITCH DOOR - 5 MODELS
46	SCREW (4)
47	WCI Q500255
48	WCI Q505564
49	WCI Q409004
