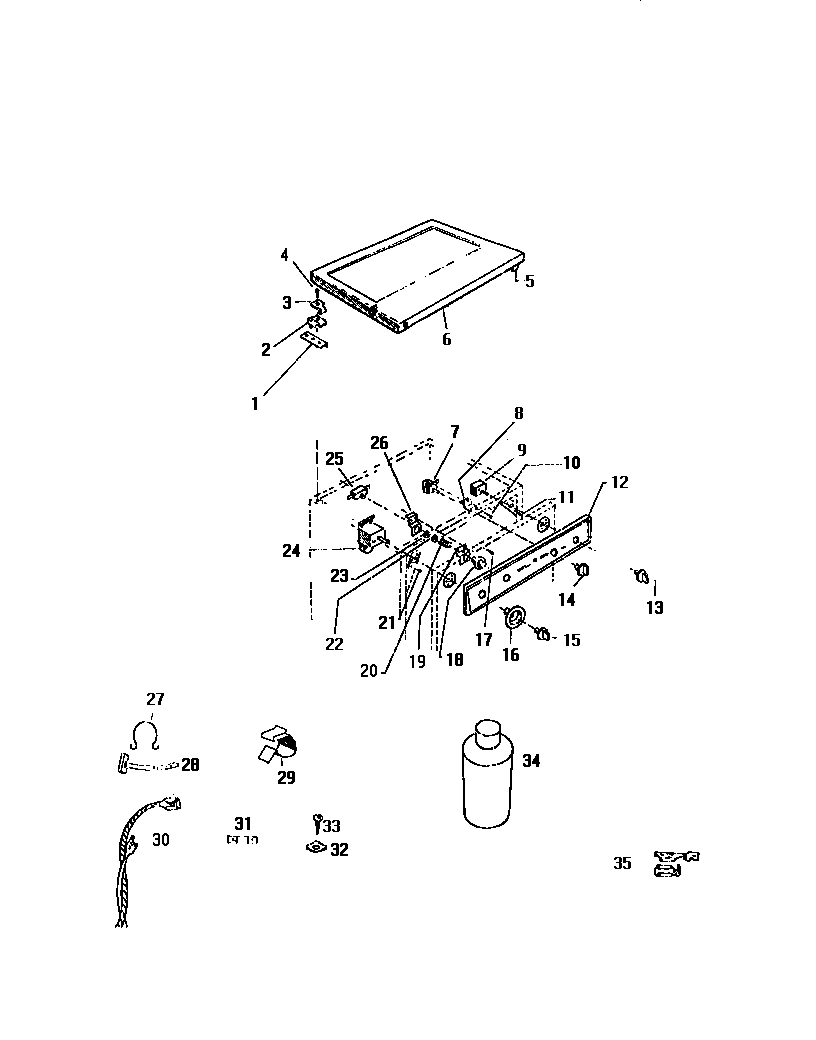

DG250EXW5 03 – CONSOLE, CONTROLS, TOP PANEL, MISCE

Products

Position	Product
*57046	CORD, SERVICE
*57044	SEALING MASTER
*57045	WCI 1443982
*57043	WCI Q278114
*57047	WCI Q63137
*57042	WCI Q278113
1	WCI Q69552
2	WCI Q69551
3	WCI Q81666
4	WCI Q415403
5	SPRING CATCH
6	WCI Q126585
7A	WCI Q435100
7	WCI Q152915
8	WCI Q630224
9	WCI Q618877
11	SCREW
12	WCI Q630231
15	KNOB TIMER
16	WCI Q617641
17	WCI Q435098
18	PUSH BUT.
19	WCI Q165150
20	WCI Q66793
21	SCREW (4)
22	WCI Q501450
23	WCI Q409004
24	WCI Q630112
25	START SWITCH
26	WCI Q165146
27	WCI Q62196
28	WCI 1468242
29	WCI Q502207
30	WCI Q632121
31	WCI 1468271
32	WCI Q500411
33	WCI Q500665
34	WCI Q49587
35D	RECEPTACLE, STRAIGHT, 5/16`` BLADE TERMINAL
35C	RECEPTACLE, STRAIGHT, FOR 3/16`` BLADE TERM. (PKG. OF 12)
35E	RECEPTACLE, STRAIGHT, FOR 5/16`` BLADE TERM. (PKG. OF 12)
35G	WCI Q301296
35B	RECEPTACLE, STRAIGHT, 3/16`` BLADE TERMINAL
35F	RECEPTACLE, FLAG, 1/4`` BLADE TERMINAL
35A	RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL (PKG. OF 12)
35	RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL
