DG250JXD1 02 – GAS VALVE BURNER ASSEMBY, SENSOR

DG250JXD1 02 – GAS VALVE BURNER ASSEMBY, SENSOR

Written by

in

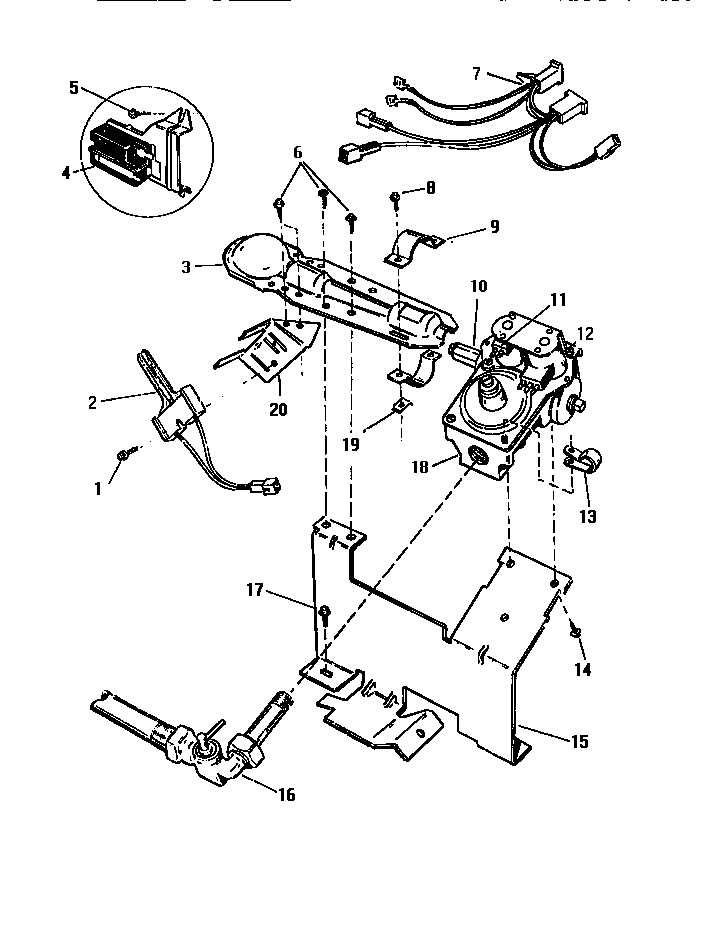

DG250JXD1 02 – GAS VALVE BURNER ASSEMBY, SENSOR

Products

PositionProduct
1WCI Q505556
2IGNITER
3WCI Q125516
4SENSOR
5SCREW (4)
6WCI Q414001
7WCI Q631782
8SCREW (4)
9WCI Q116032
10AORIFICES, MFD GAS
10ORIFICES, NATURAL GAS
10BORIFICES, LP GAS KIT
11WCI Q622602
12WCI Q622601
13WCI Q622604
14WCI Q505564
15WCI Q631531
16WCI Q600621
17WCI Q500437
18WCI Q630822
19SPEEDNUT (2)
20BRACKET IGNITER
