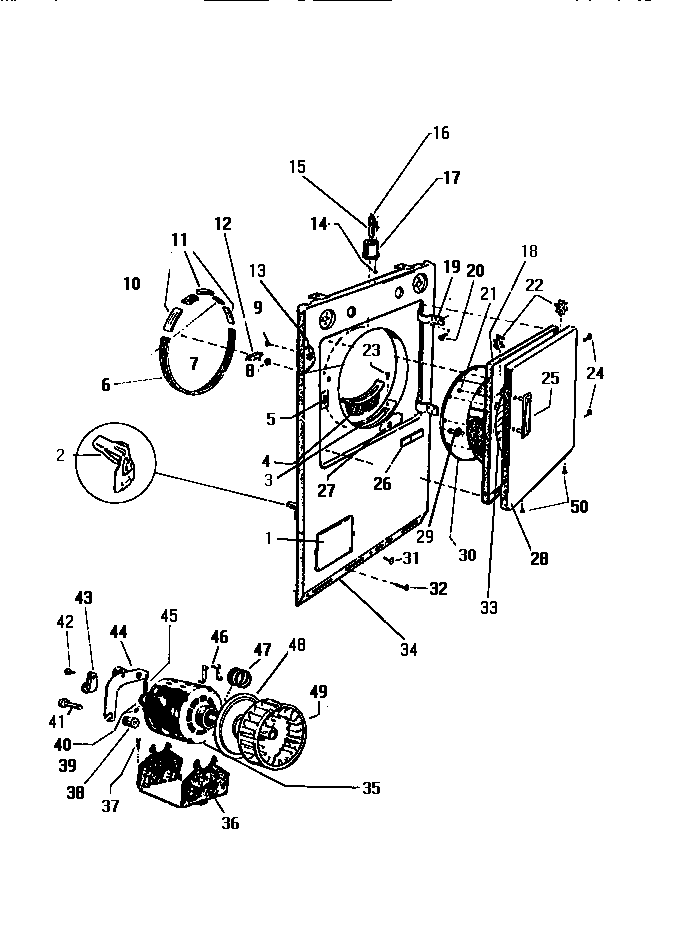

DG250JXF1 04 – FRONT PANEL, DOOR

Products

Position	Product
1	ACCESS DOOR, COFFEE
2	CLIP (4)
3	FRAME LINT TRAP
4	WCI Q632621
5	WCI Q504551
6	WCI Q142888
7	WCI Q15142
8	WCI Q409004
9	WCI Q505564
10	WCI Q15141
11	GUIDE KIT
12	WCI Q922421
13	WCI Q500255
14	SCREW (4)
15	DOUBLE CONTACT BAYONET BASE 15W, 115/125V, CLEAR (BULB T
16	WCI Q128481
17	WCI Q182671
18A	PANEL INNER DOOR, COFFEE
19	WCI Q607301
21	WCI Q503952
22	WCI Q631591
23	WCI Q403103
24	WCI Q504773
25	WCI Q622791
26	WCI Q604443
27	WCI Q500265
28A	PANEL OUTER DOOR, COFFEE
29	WCI Q504552
30	WCI Q167703
31	WCI Q500717
32	WCI Q405802
33	SHIELD
34A	WCI Q632687
35E	START SWITCH FOR Q616401 GE
35	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
35F	START SWITCH FOR Q616391 EMER.
35A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
35B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
35D	START SWITCH FOR Q615921 WW
36	WCI Q94874
37	SCREW
38	WCI Q600179
39	SCREW
40	PULLEY (SEE NOTE 1)
41	WCI Q433401
42	WCI Q414002
43	CLAMP
44	IDLER PULLEY AND BRACKET
45	SPRING
46	WCI Q62206
47	WCI Q94715
49	WCI Q615901
