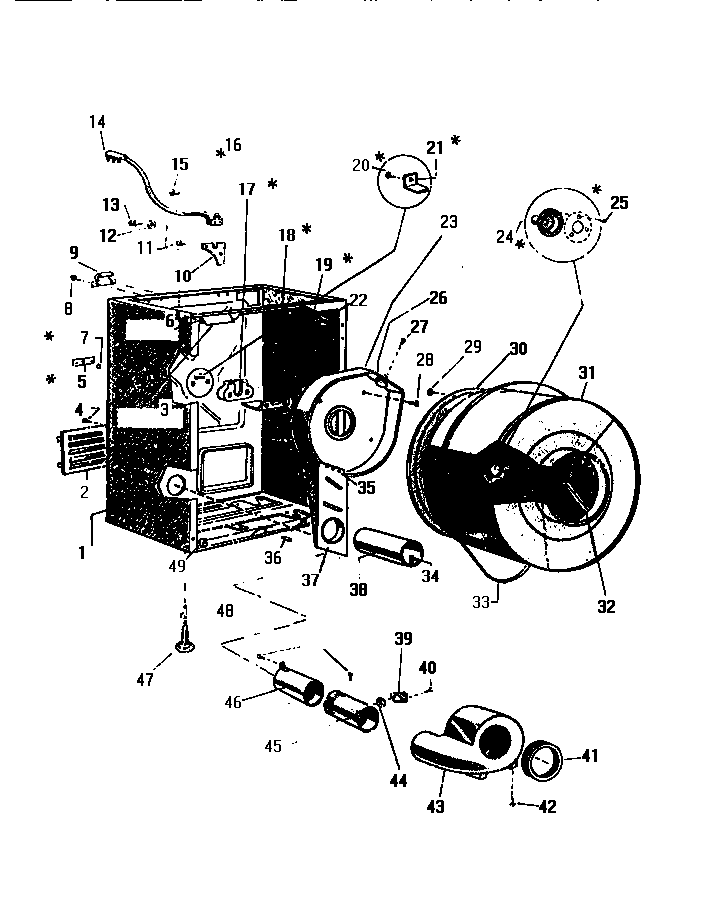

DG250JXV1 03 – CABINET, DRUM, HEATER HOUSINGadmin2025-04-26T10:01:40+00:00DG250JXV1 03 – CABINET, DRUM, HEATER HOUSING
Products
| Position | Product |
|---|
| 1 | BODY |
| 2 | WCI Q94811 |
| 3 | WCI Q623021 |
| 5 | SPEED NUT STRIP |
| 6 | WCI Q505071 |
| 7 | BALL |
| 9 | WCI Q155561 |
| 10 | WCI Q167097 |
| 11 | WCI Q403102 |
| 12 | WCI Q500411 |
| 13 | WCI Q500665 |
| 14 | WCI Q612664 |
| 15 | WCI Q435152 |
| 16 | REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21) |
| 17 | BEARING |
| 18 | BRACKET |
| 19 | SCREW |
| 21 | BRACKET |
| 23 | HEATER HOUSING |
| 24 | SHAFT |
| 25 | SCREW |
| 26 | THERMOSTAT, HI LIMIT |
| 29 | SCREW (3) |
| 30 | WCI Q165773 |
| 31 | SPINNER, BASKET |
| 32B | WCI Q501592 |
| 32 | WCI Q615892 |
| 32A | WCI Q615891 |
| 33 | WCI Q63807 |
| 34 | WCI Q505564 |
| 35 | SCREW (4) |
| 36 | TOGGLE KIT |
| 37 | WCI Q116393 |
| 38 | TUBE, BURNER |
| 39 | WCI Q634402 |
| 40 | SCREW |
| 41 | WCI Q19462 |
| 42 | SCREW (4) |
| 43 | WCI Q171281 |
| 44 | WCI Q606131 |
| 45 | DUCT, THERM. |
| 46 | WCI Q182901 |
| 47 | WCI Q504971 |
| 48 | GROMMET ( FOOT BOLT ) |
| 49 | WCI Q505011 |
