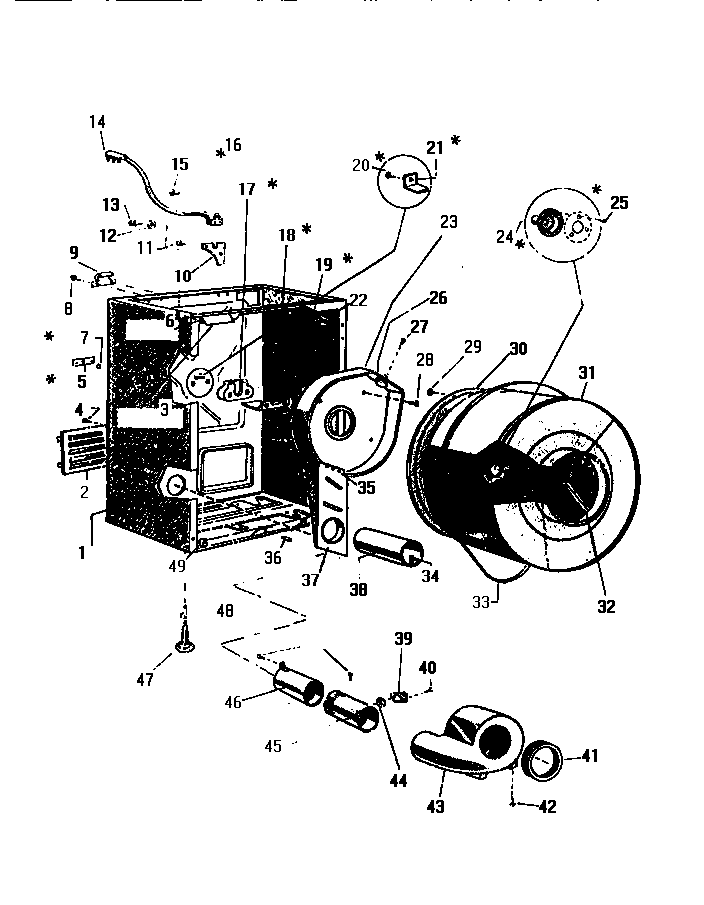

DG250JXW1 03 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
1	WCI Q622925
2	WCI Q94811
3	WCI Q623021
5	SPEED NUT STRIP
6	WCI Q505071
7	BALL
9	WCI Q155561
10	WCI Q167097
11	WCI Q403102
12	WCI Q500411
13	WCI Q500665
14	WCI Q612664
15	WCI Q435152
16	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
17	BEARING
18	BRACKET
19	SCREW
21	BRACKET
23	HEATER HOUSING
24	SHAFT
25	SCREW
26	THERMOSTAT, HI LIMIT
29	SCREW (3)
30	WCI Q165773
31	SPINNER, BASKET
32B	WCI Q501592
32	WCI Q615892
32A	WCI Q615891
33	WCI Q63807
34	WCI Q505564
35	SCREW (4)
36	TOGGLE KIT
37	WCI Q116393
38	TUBE, BURNER
39	WCI Q634402
40	SCREW
41	WCI Q19462
42	SCREW (4)
43	WCI Q171281
44	WCI Q606131
45	DUCT, THERM.
46	WCI Q182901
47	WCI Q504971
48	GROMMET ( FOOT BOLT )
49	WCI Q505011
