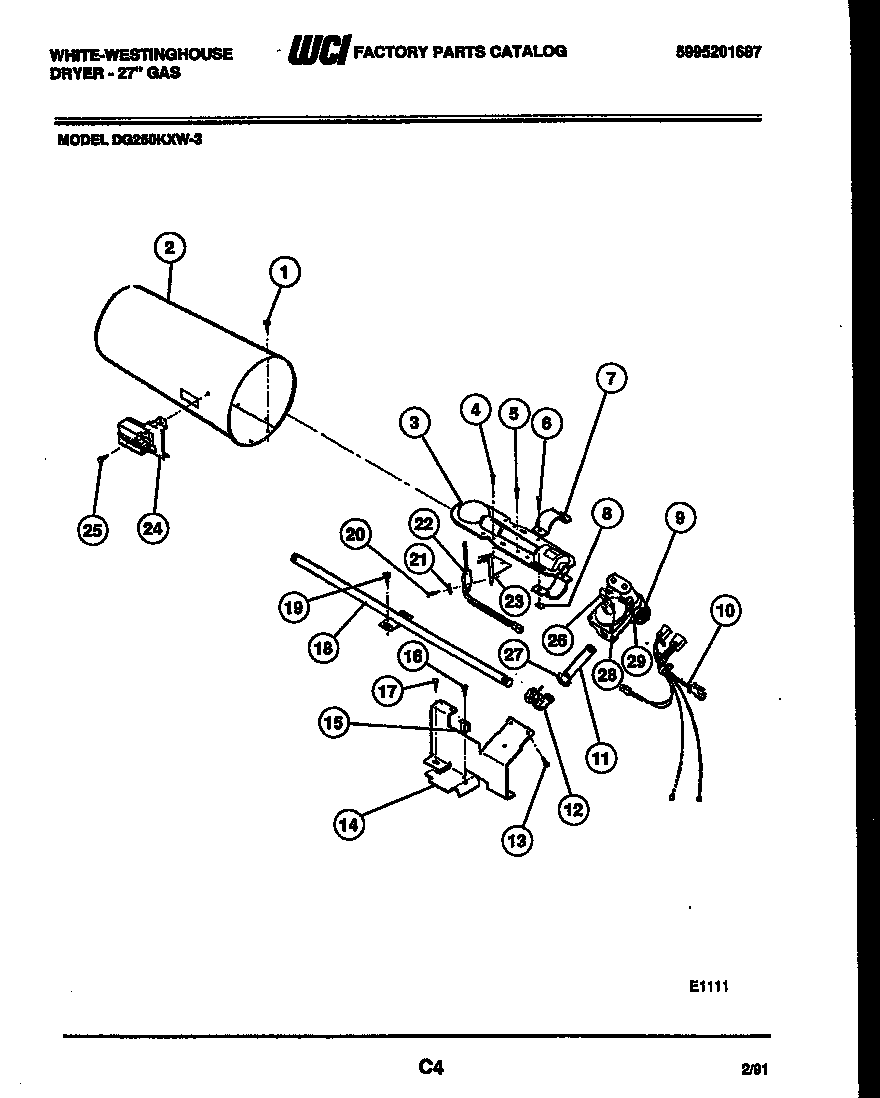

DG250KXH3 05 – BURNER, IGNITER AND VALVE

DG250KXH3 05 – BURNER, IGNITER AND VALVE

Written by

in

DG250KXH3 05 – BURNER, IGNITER AND VALVE

Products

PositionProduct
2TUBE ASSY BURNER
3134264900 Frigidaire Burner
7AIR SHUTTER (2)
8NUT (2)
9VALVE (1)
10HARNESS (1)
11UNION MALE CONNECTION (1)
12ANGLE VALVE (1)
13131243800 Frigidaire Screw
14BRACKET (1)
15CLIP
18WCI 08015271
19SCREW (4)
20SCREW (1)
215300809968 Frigidaire Dishwasher P-1 Washer
225303937186 Frigidaire Dryer Flat Igniter Assembly
23BRACKET-IGNITOR (1)
245303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25SCREW (2)
26ORIFICE – NATURAL GAS
26BWCI 5300171852
26AWCI 3281140
27NUT-HEX UNION
295303931775 Frigidaire Dryer Coil Kit
