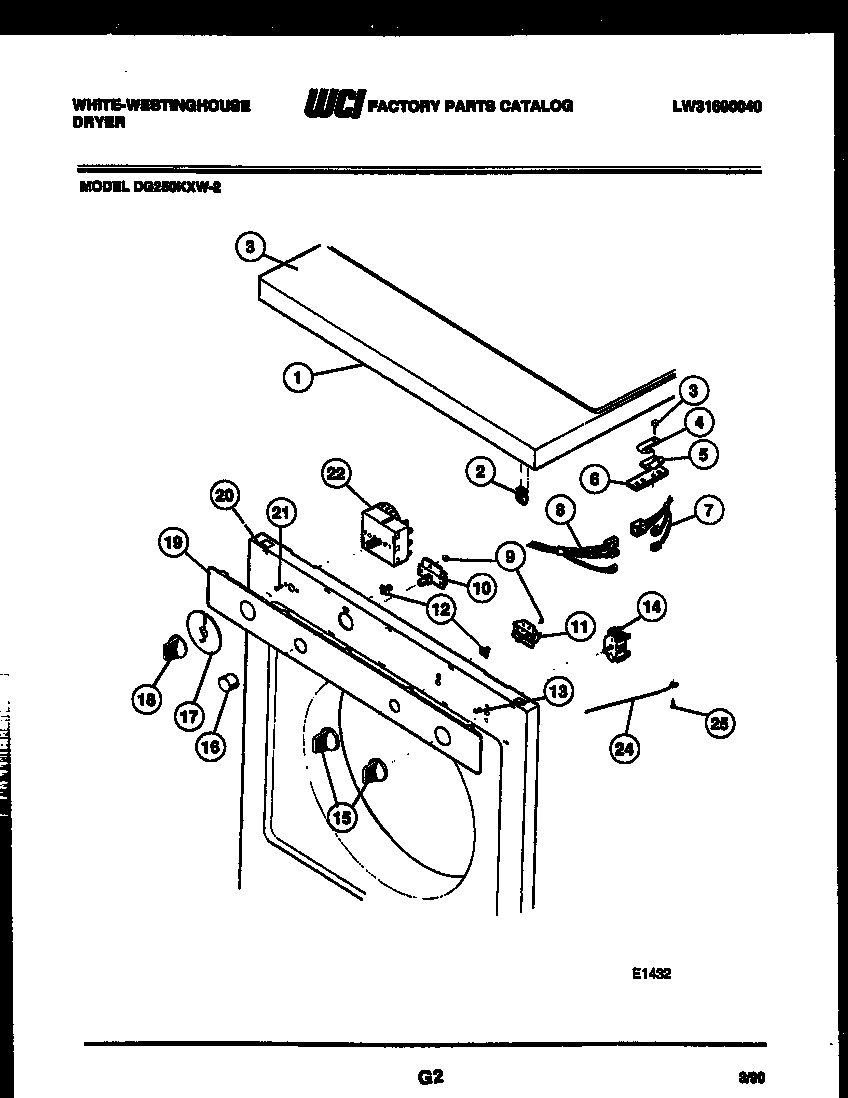

DG250KXW2 04 – DOOR AND INSTALLATION PARTS

DG250KXW2 04 – DOOR AND INSTALLATION PARTS

Written by

in

DG250KXW2 04 – DOOR AND INSTALLATION PARTS

Products

Position	Product
1	WCI 3203243
2	SPRING CATCH
3	SCREW
4	WCI 3281163
5	WCI 3281164
6	WCI 3281165
7A	5303303590 Frigidaire Dryer 4.0" Cable Tie
7	WCI 3205700
8	WCI 3203246
9	WCI 3281089
10	WCI 3203292
11	WCI 5300632404
12	WCI 3281092
13	WCI 3281101
14	WCI 3281100
15	WCI 5300633724
16	WCI 3201221
17	WCI 08027433
18	KNOB-TIMER
19	WCI 5300633781
20	WCI 3205661
21	SCREW (2)
22A	WCI 3281021
22	WCI 08027438
22B	FASTENER
24	WIRE-GROUND
25	SCREW (2)
25	WCI 3203253
25	WCI 3281173
25	WCI 3281171
25	316008401 Frigidaire Washer P-1
