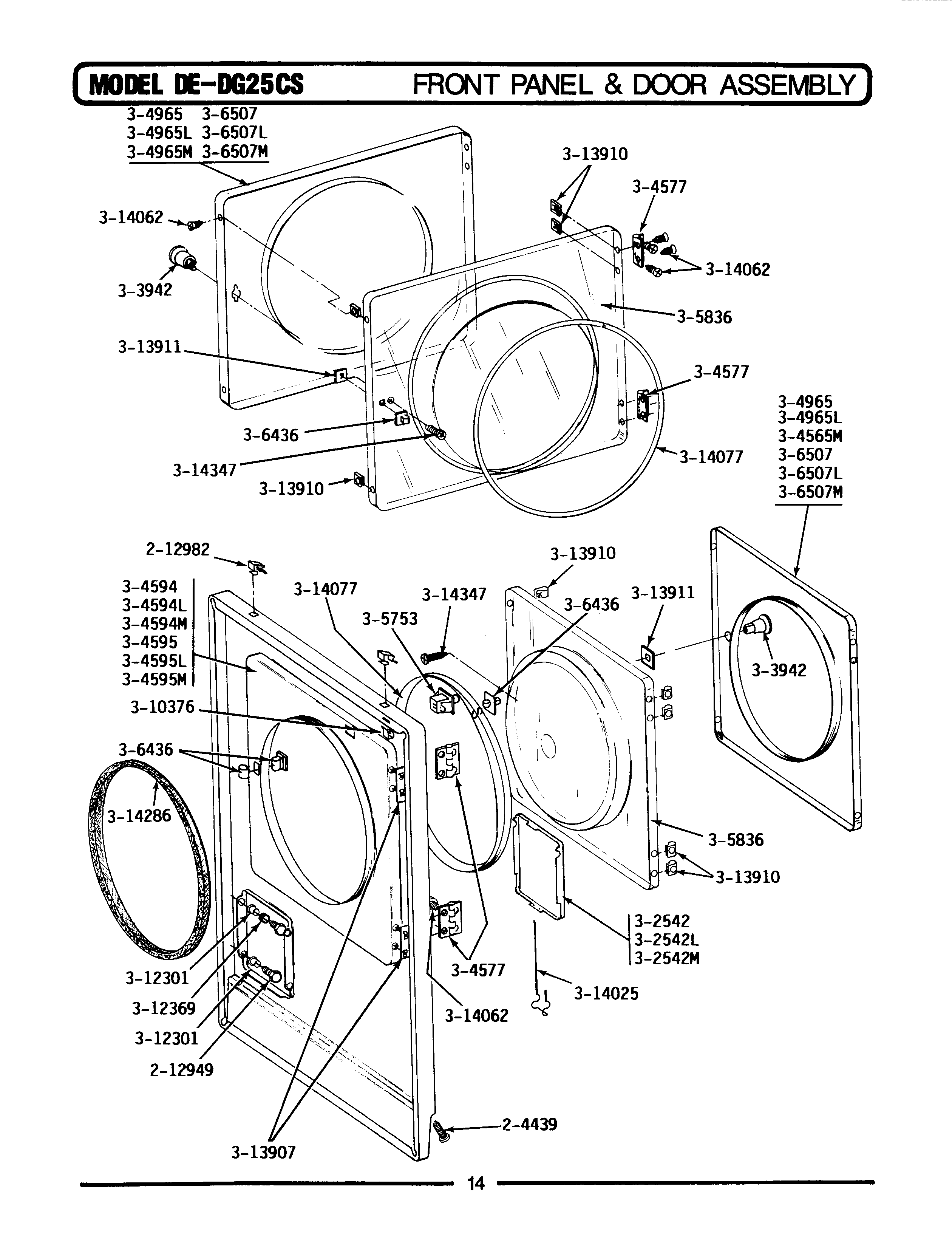

DG25CS 07 – FRONT PANEL & DOOR ASSEMBLY

DG25CS 07 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG25CS 07 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
006MAY Y304577
008MAY 304965
009W10169313 Whirlpool Door Switch Kit
011306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
013MAY Y310376
015SLEEVE, ACCESS DOOR RUBBER
016LABEL, LINT SCREEN INSTR.
017MAY Y313907
018CLIP, DOOR LINER
019MAY Y313911
020MAY Y313927
021LATCH, ACCESS DOOR
023MAY 314077
026DOWEL PIN FOR HANDLE
