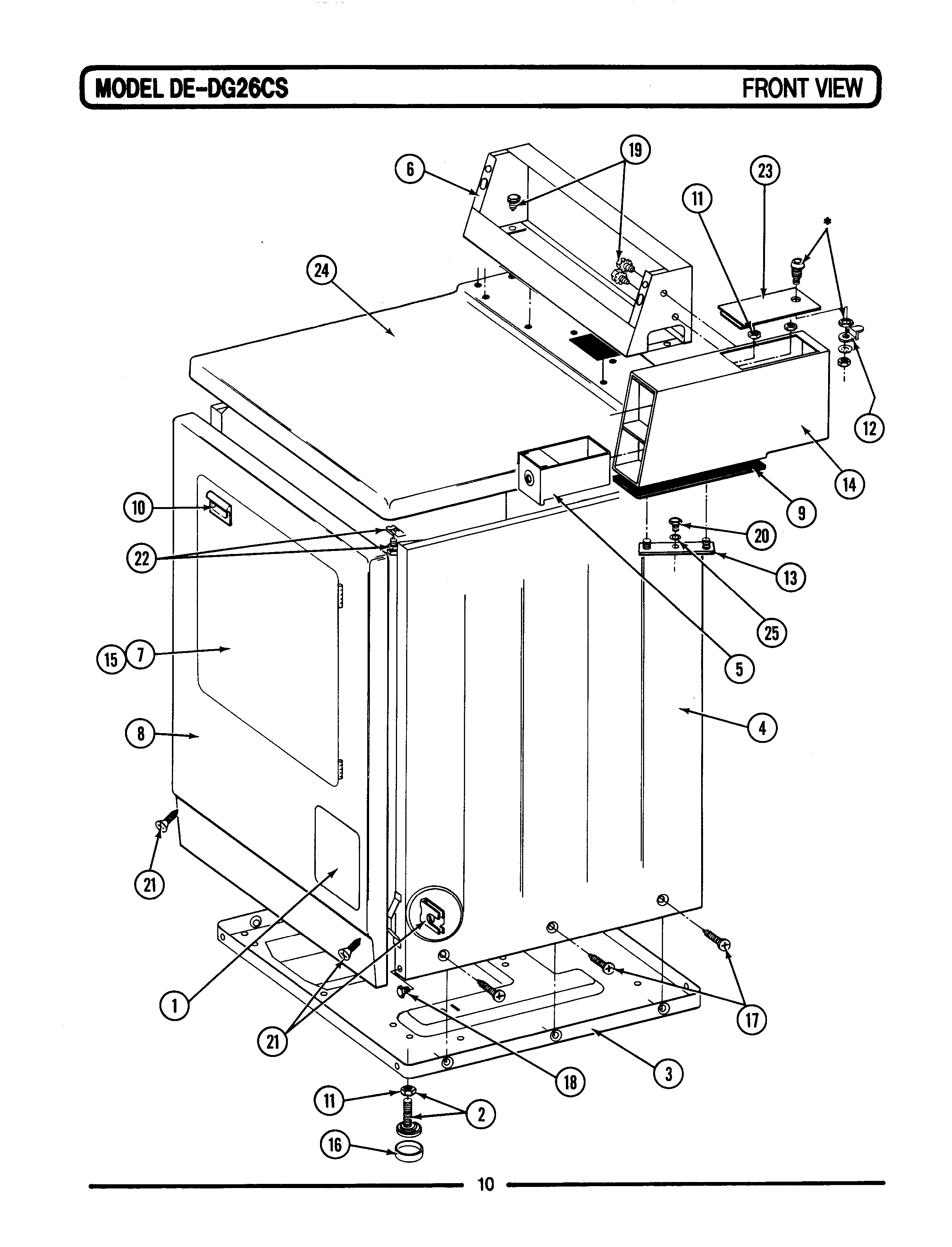

DG26CS 04 – FRONT VIEW

DG26CS 04 – FRONT VIEW

Written by

in

DG26CS 04 – FRONT VIEW

Products

PositionProduct
002W10176519 Whirlpool Leveling Feet
003MAY Y303361
005MAY 205423M
005COIN BOX-ALMOND
005COIN BOX-WHITE
007MAY Y307111
008(ALM)
009MAY 214660
010MAY 314946
010MAY 314972
011WP62739 Whirlpool Nut
012W11165684 Whirlpool Cam
014MAY 206956
014MAY 206956L
014MAY 206956M
015MAY 314966
016WPY314137 Whirlpool Rubber Foot
017213007 Whirlpool Screw #12
018MAY Y310632
019MAY 212276
020WP90767 Whirlpool Screw
021SCREW & FSTNER ASSY (FT. PNL)
022MAY 204445
023MAY 203188M
023ACCESS DOOR-ALMOND
023MAY 203188
024MAY 307105
024DOWEL PIN FOR HANDLE
025MAY 910309
