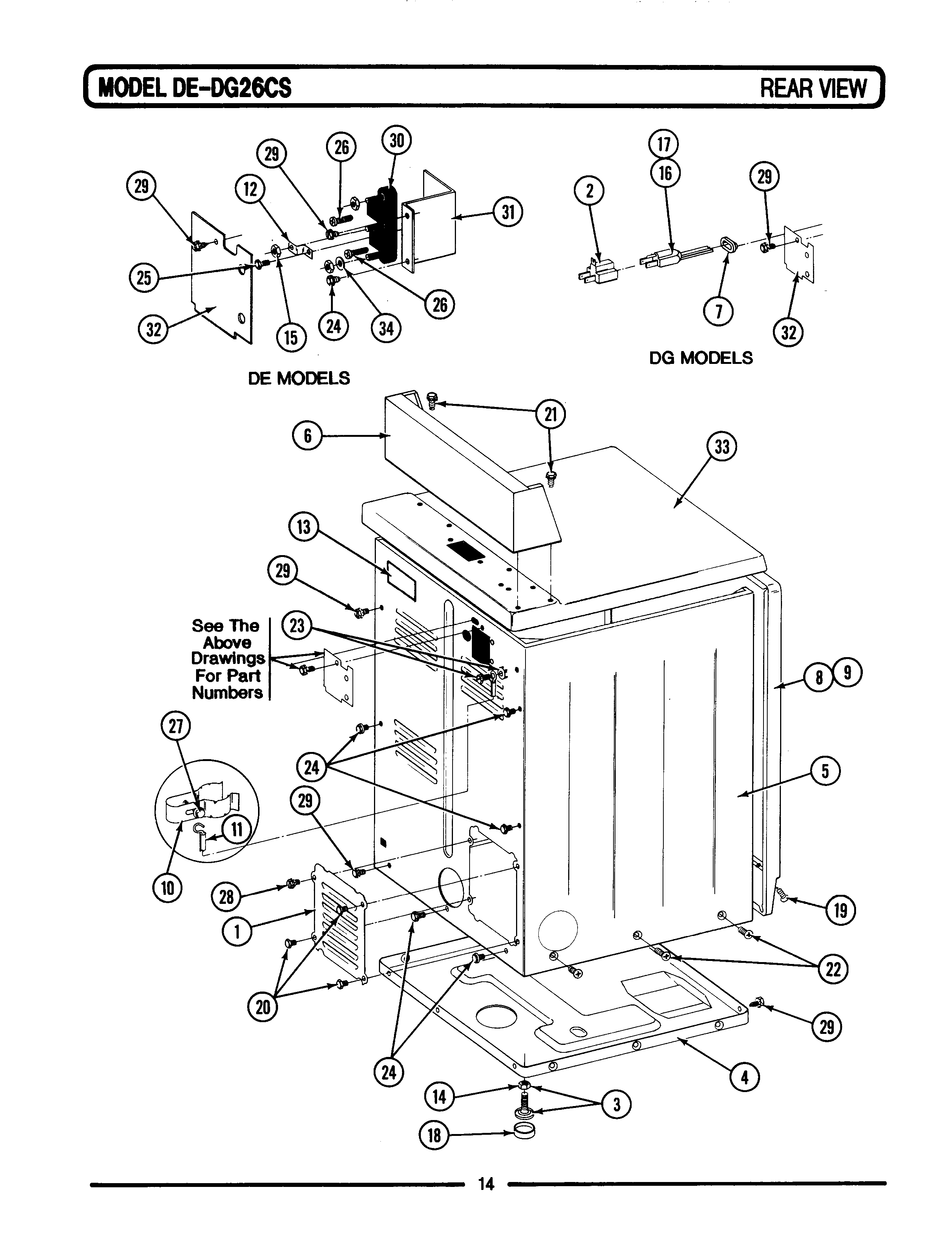

DG26CS 05 – REAR VIEW

DG26CS 05 – REAR VIEW

Written by

in

DG26CS 05 – REAR VIEW

Products

Position	Product
001	MAY Y312951
002	MAY Y201808
003	W10176519 Whirlpool Leveling Feet
004	MAY Y303361
007	GROMMET
009	(ALM)
010	MAY 301548
011	WP311155 Whirlpool Wire Assembly
012	PART NOT USED
013	INSTRUCTION LABEL
014	WP62739 Whirlpool Nut
015	WP112432 Whirlpool Nut Assembly
016	MAY 302521
017	MAY 305168
018	WPY314137 Whirlpool Rubber Foot
019	SCREW & FSTNER ASSY (FT. PNL)
020	WP90767 Whirlpool Screw
021	MAY 212276
022	213007 Whirlpool Screw #12
024	MAY Y310632
025	PART NOT USED
026	SCREW, No.10-24 X 3/4 INCH—–O
027	MAY 313122
028	MAY Y313559
029	MAY Y313561
030	PART NOT USED
031	PART NOT USED
032	MAY Y312905
033	DOWEL PIN FOR HANDLE
033	MAY 307105
034	WPY311270 Whirlpool Washer TE
