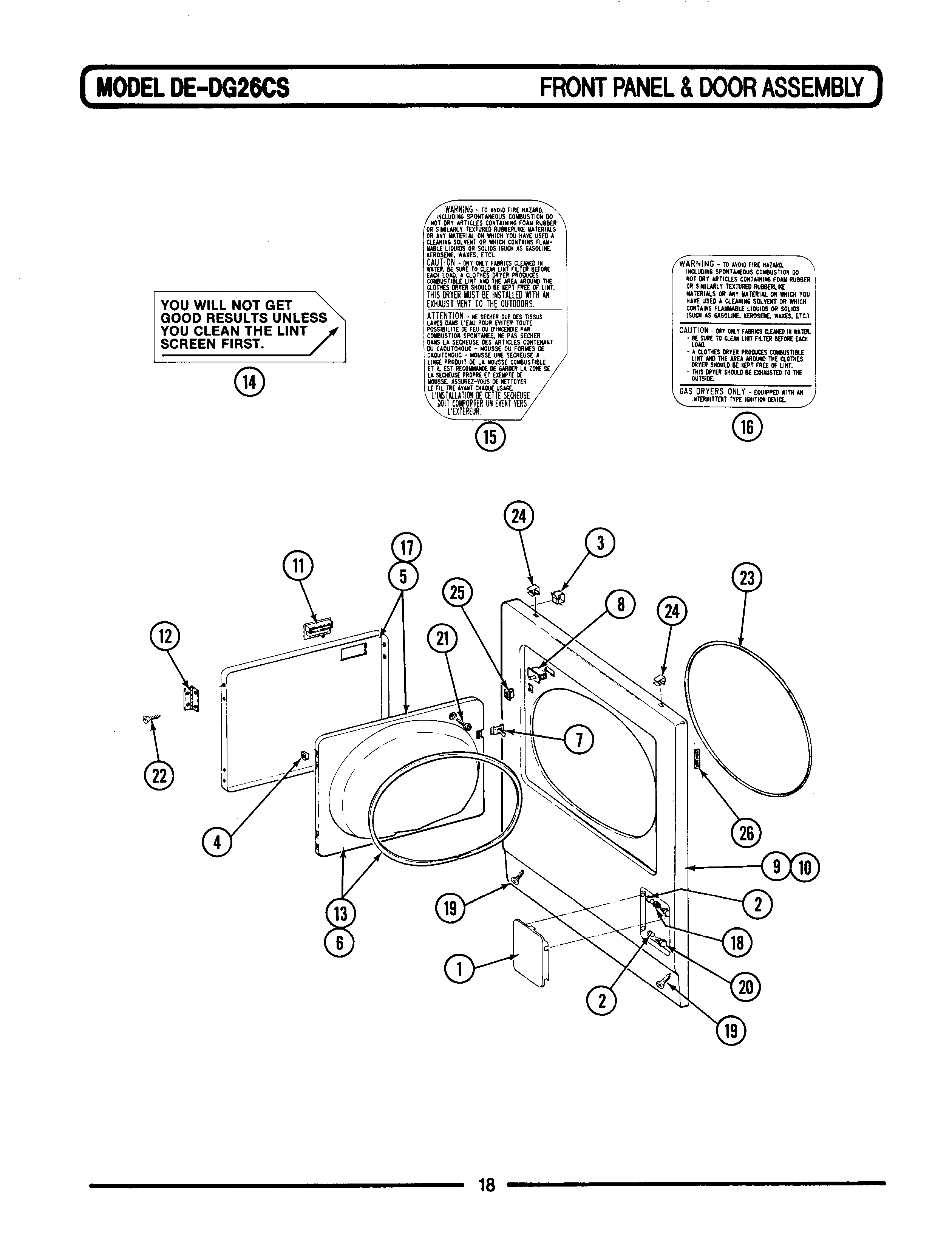

DG26CS 06 – FRONT PANEL & DOOR ASSEMBLY

DG26CS 06 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG26CS 06 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
003MAY Y310376
004CLIP, DOOR LINER
005MAY Y307111
006MAY 314935
007MAY 314944
007MAY 314936
008W10169313 Whirlpool Door Switch Kit
010(ALM)
011MAY 314972
011MAY 314946
012MAY 307099
013MAY 307098
014LABEL, LINT SCREEN INSTR.
015MAY 314941
017MAY 314966
017DOWEL PIN FOR HANDLE
018SLEEVE, ACCESS DOOR RUBBER
019SCREW & FSTNER ASSY (FT. PNL)
020SCREW, BUSHINGS
021SCREW
023MAY 314937
024MAY 212982
025306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
026MAY Y313907
