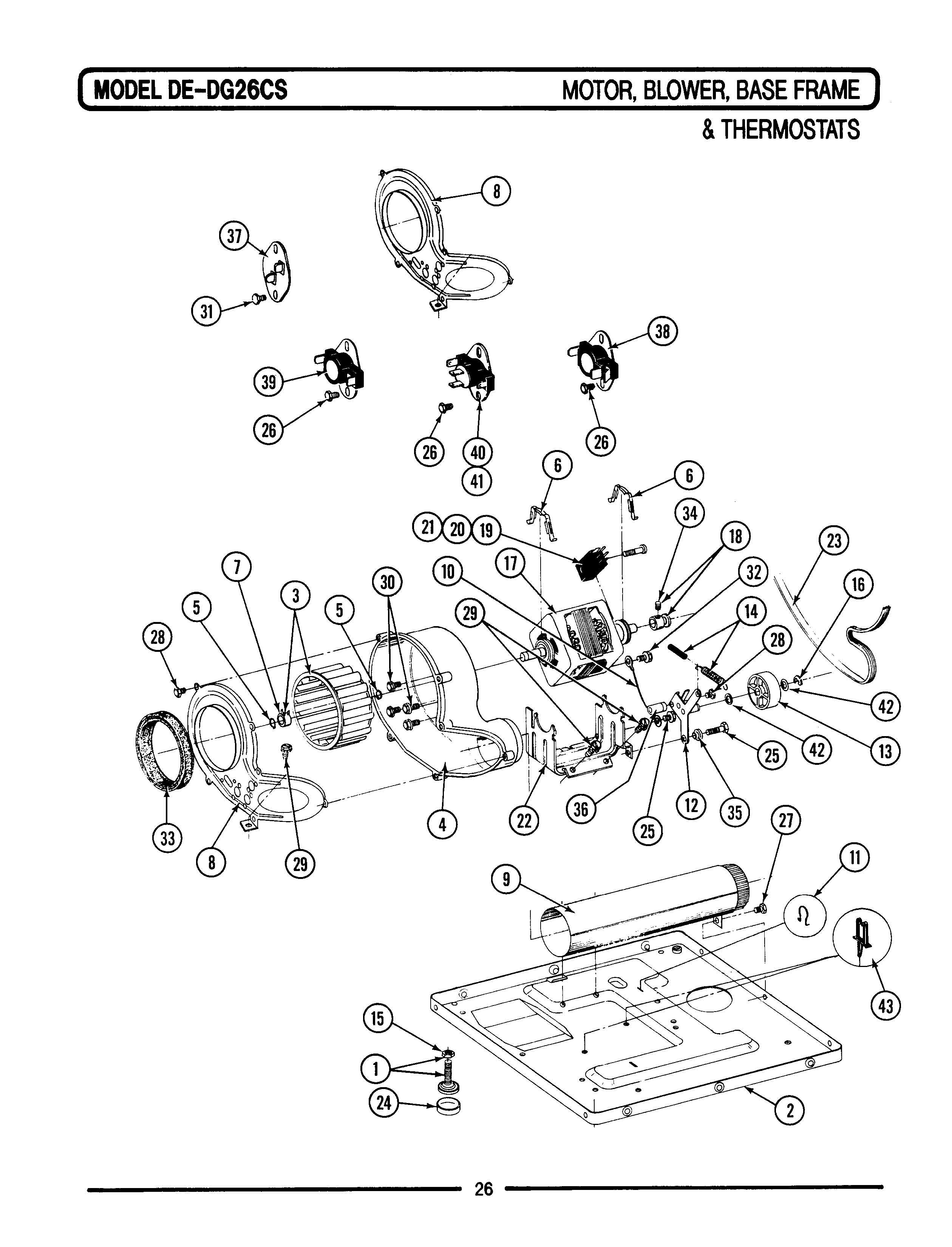

DG26CS 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	W10176519 Whirlpool Leveling Feet
002	MAY Y303361
003	Y303836 Whirlpool Dryer Blower Wheel
004	MAY Y312893
005	WP9703438 Whirlpool Snap Retaining Ring
006	WPY015825 Whirlpool Motor Clip
007	WP312967 Whirlpool Clamp
008	MAY 314847
009	MAY Y303442
010	MAY 901220
011	MAY 410490
012	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
013	WP6-3037050 Whirlpool Idler Pulley
014	MAY Y303945
015	WP62739 Whirlpool Nut
016	WP354987 Whirlpool C-Clip
017	W10410999 Whirlpool Dryer Drive Motor
018	MAY Y305185
019	MAY Y303877
020	MAY Y303879
021	MAY 306207
023	WPY312959 Whirlpool Dryer Drum Belt
024	WPY314137 Whirlpool Rubber Foot
025	WPY014874 Whirlpool Screw
026	WP90767 Whirlpool Screw
027	MAY Y310632
028	WPW10116751 Whirlpool Screw
029	MAY Y313561
030	MAY 314818
031	DOWEL PIN FOR HANDLE
032	MAY 910343
033	WPY312901 Whirlpool Blow Seal
034	MAY Y053241
035	SLEEVE, IDLER ARM —-S
036	WPW10116756 Whirlpool Spacer
037	WP306604 Whirlpool Cut-off
038	PART NOT USED
039	WP694674 Whirlpool Cycling Thermostat
040	THERMOSTAT, MULTI-TEMPERATURE
041	PART NOT USED
042	MAY Y312527
043	MAY Y313262
