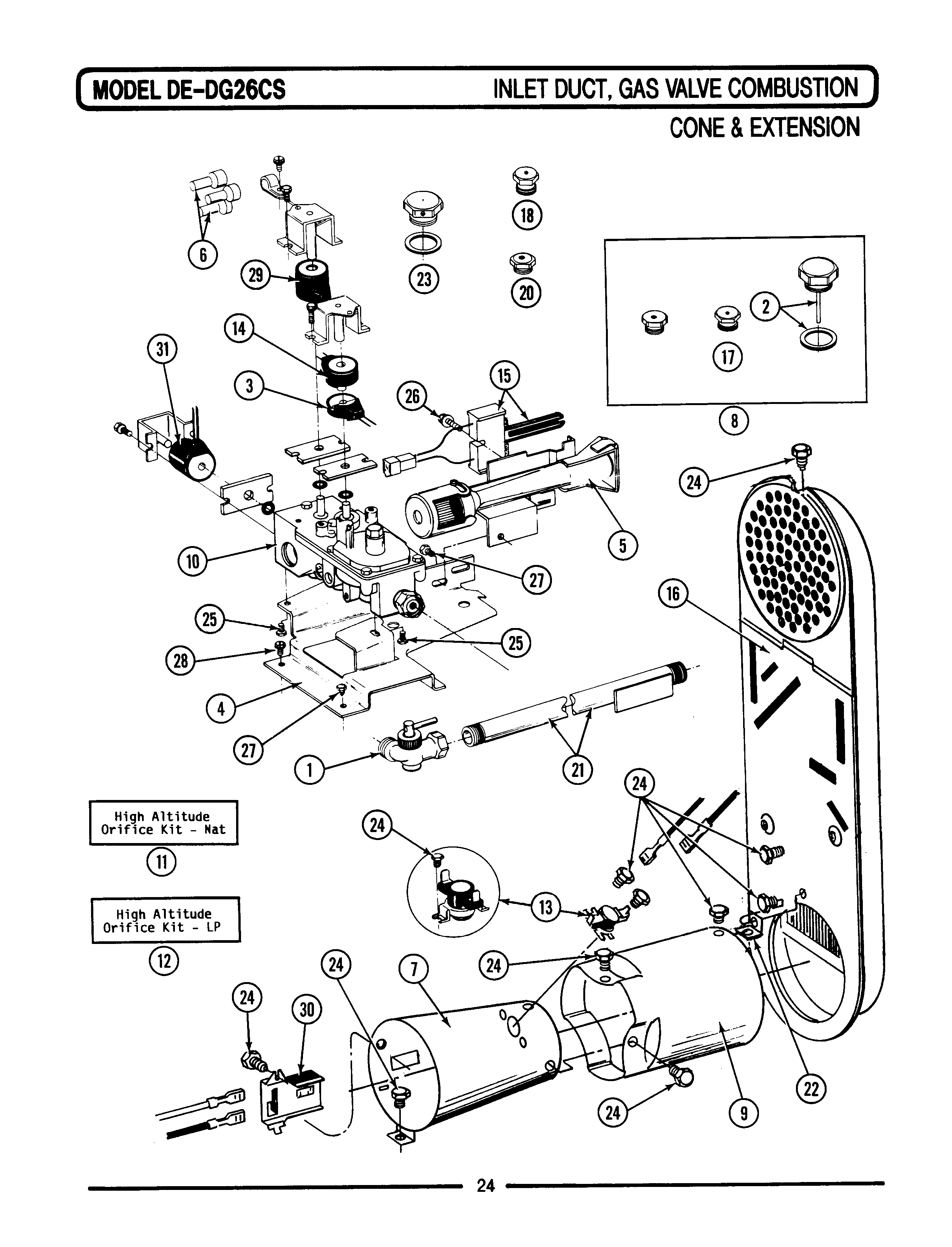

DG26CS 10 – INLET DUCT, GAS VALVE, CONE & EXTENSION

DG26CS 10 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Written by

in

DG26CS 10 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Products

PositionProduct
001MAY Y303349
003WP305605 Whirlpool Coil Assembly
004MAY 312929
005MAY 304974
006MAY 311546
007MAY Y303368
007MAY Y308548
008CONVERSION KIT (NAT.TO LP)
009MAY Y303841
010MAY Y303777
013WP305169 Whirlpool Thermostat
014MAY 305604
0154391996 Whirlpool Dryer Flat Igniter
016MAY 307119
018MAY 313367
020MAY 313366
021MAY Y303383
022MAY Y312890
024WP90767 Whirlpool Screw
025DOWEL PIN FOR HANDLE
026MAY 304971
027MAY Y310632
028MAY Y313561
029MAY 305603
030WP338906 Whirlpool Dryer Gas Sensor
031MAY Y304626
