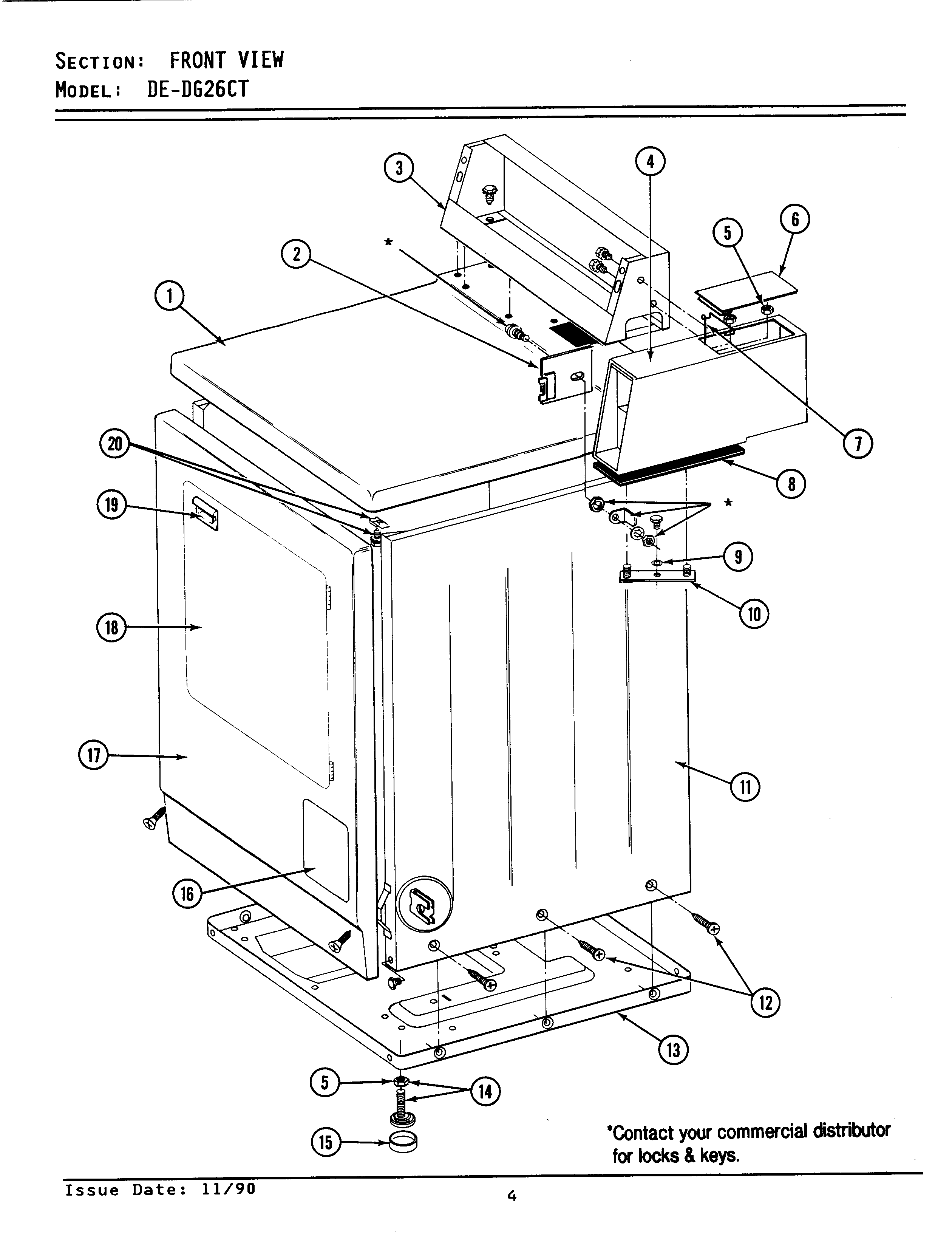

DG26CT 01 – FRONT VIEW – CT MODELS
Written by
in
DG26CT 01 – FRONT VIEW – CT MODELS
Products
| Position | Product |
|---|---|
| 001 | MAY 307105 |
| 003 | MAY 212276 |
| 005 | WP62739 Whirlpool Nut |
| 007 | MAY 214878 |
| 008 | MAY 214660 |
| 009 | MAY 910309 |
| 011 | MAY Y310632 |
| 012 | 213007 Whirlpool Screw #12 |
| 013 | MAY Y303361 |
| 014 | W10176519 Whirlpool Leveling Feet |
| 015 | WPY314137 Whirlpool Rubber Foot |
| 017 | (ALM) |
| 018 | MAY 308061 |
| 019 | MAY 314972 |
| 019 | MAY 314946 |
| 019 | DOWEL PIN FOR HANDLE |
| 020 | MAY 204445 |
