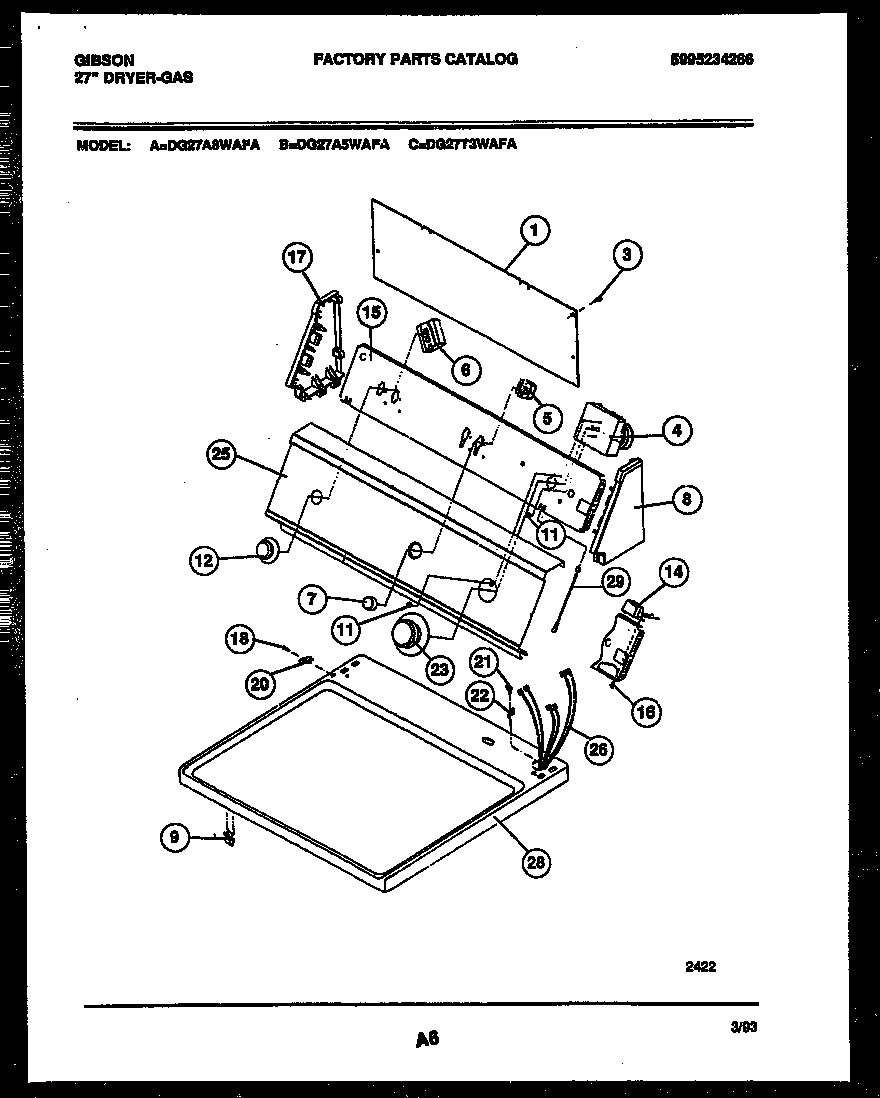

DG27A5WAFA 04 – CONSOLE AND CONTROL PARTS

DG27A5WAFA 04 – CONSOLE AND CONTROL PARTS

Written by

in

DG27A5WAFA 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*65154REGISTER
1COVER-BACK
3131205100 Frigidaire Screw
4WCI 131062400
5WCI 131048000
7WCI 131032900
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
14WCI 5303210285
15BRACKET – CONTROL
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 131030802
25WCI 131095200
26WCI 131003300
28PANEL-TOP-WHITE
28PANEL TOP-ALMOND
29WCI 131062202
