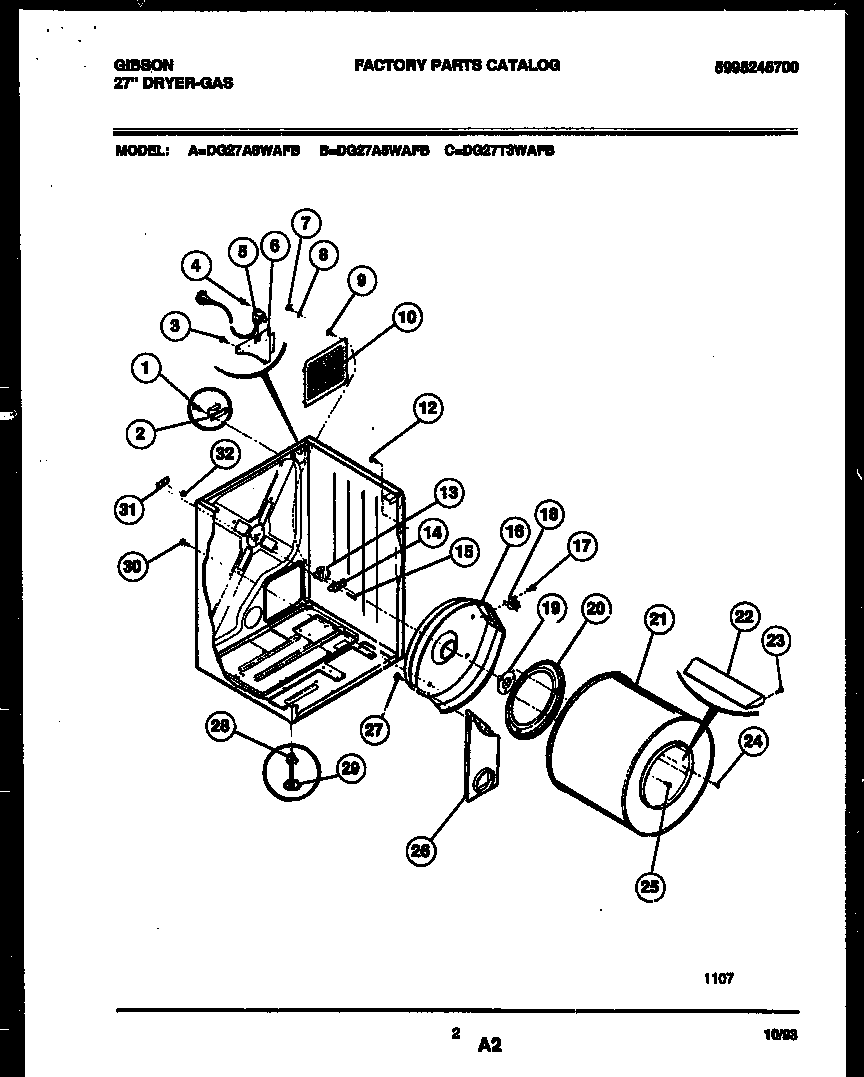

DG27A5WAFB 02 – CABINET AND COMPONENT PARTS

DG27A5WAFB 02 – CABINET AND COMPONENT PARTS

Written by

in

DG27A5WAFB 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*62709WCI 5303281153]
*62708DRYING RACK-OPTIONAL
*62708CLIP-CAB. FRONT BTM
1WCI 08011338
2WCI 3281175
35303015671 Frigidaire Bracket Termination Screw
4WCI 5308015309
5CORD-SERVICE
6WCI 3281130
7134154100 Frigidaire Screw 10-32 x 0.375 Co
8WASHER
10PLATE-COVER
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16HEATER HSG & SEAL ASSEMBLY
17SCREW (2)
185308015399 Frigidaire P-1 THERMSTAT-Safety
195303931781 Frigidaire Shaft
203204254 Frigidaire Baffle Assembly
21WCI 3201199
22137552900 Frigidaire Vane
23131382300 Frigidaire Screw-VANE
24WCI 5303207393
25SCREW (3) (PART OF REAR BEARING KIT.)
26DUCT-HEAT
27SCREW
28WCI 3201202
29BOLT-FOOT (4)
30WCI 5303010202
315303281020 Frigidaire Ball Clip
325303281019 Frigidaire Ball Assembly
