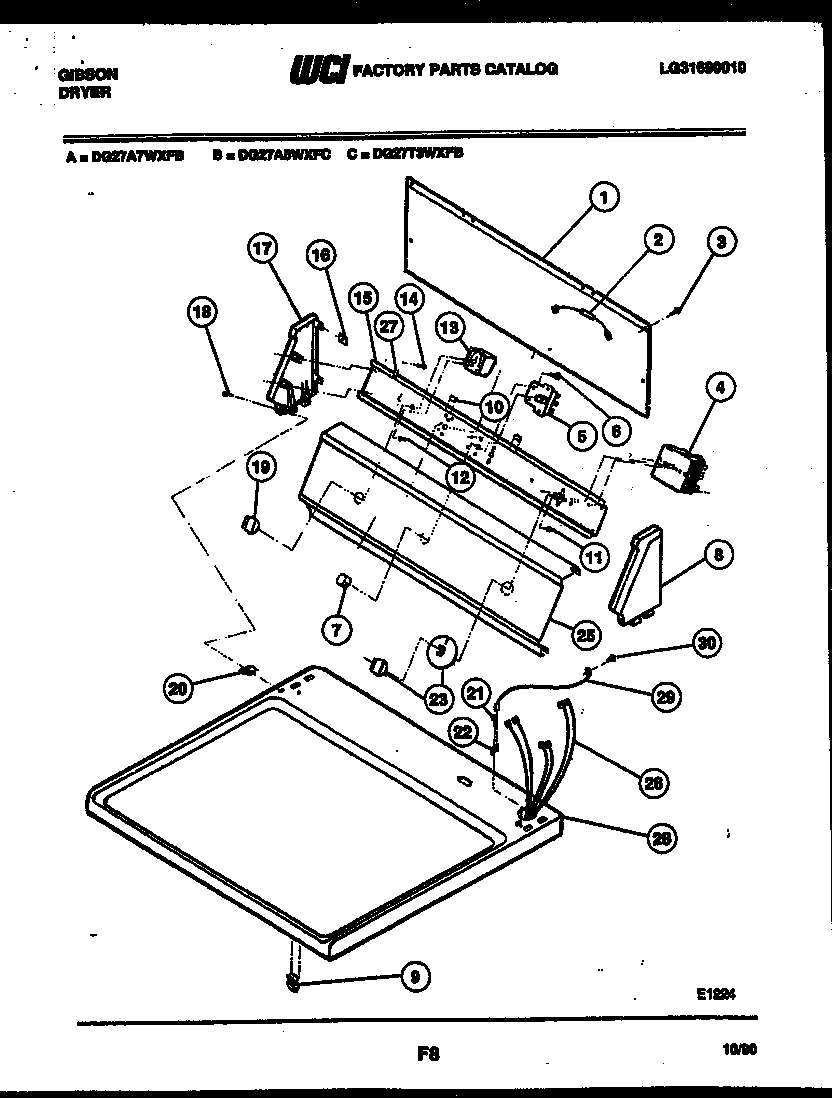

DG27A5WXFC 04 – CONSOLE AND CONTROL PARTS

DG27A5WXFC 04 – CONSOLE AND CONTROL PARTS

Written by

in

DG27A5WXFC 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*30742WCI 08010804
*30743HARNESS, BUZZER (NON-ILLUSTRATED)
*30742WCI 5308004087
1COVER-BACK
2REGISTER
4WCI 5303211436
5SWITCH – START
6WCI 08001544
7WCI 3201220
8WCI 3205840
93205821 Frigidaire Clip
10PAD (2)
11SCREW (2)
145303015671 Frigidaire Bracket Termination Screw
15WCI 5303210137
16CLIP (8)
17WCI 3205842
18SCREW (2)
20CLIP
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 3205843
25WCI 5303211433
26A5303303590 Frigidaire Dryer 4.0" Cable Tie
26WCI 3206006
27WCI 3281200
28PANEL – TOP ALMD
28WCI 5303210109
28WCI 5303211434
29WCI 3201308
30SCREW (2)
