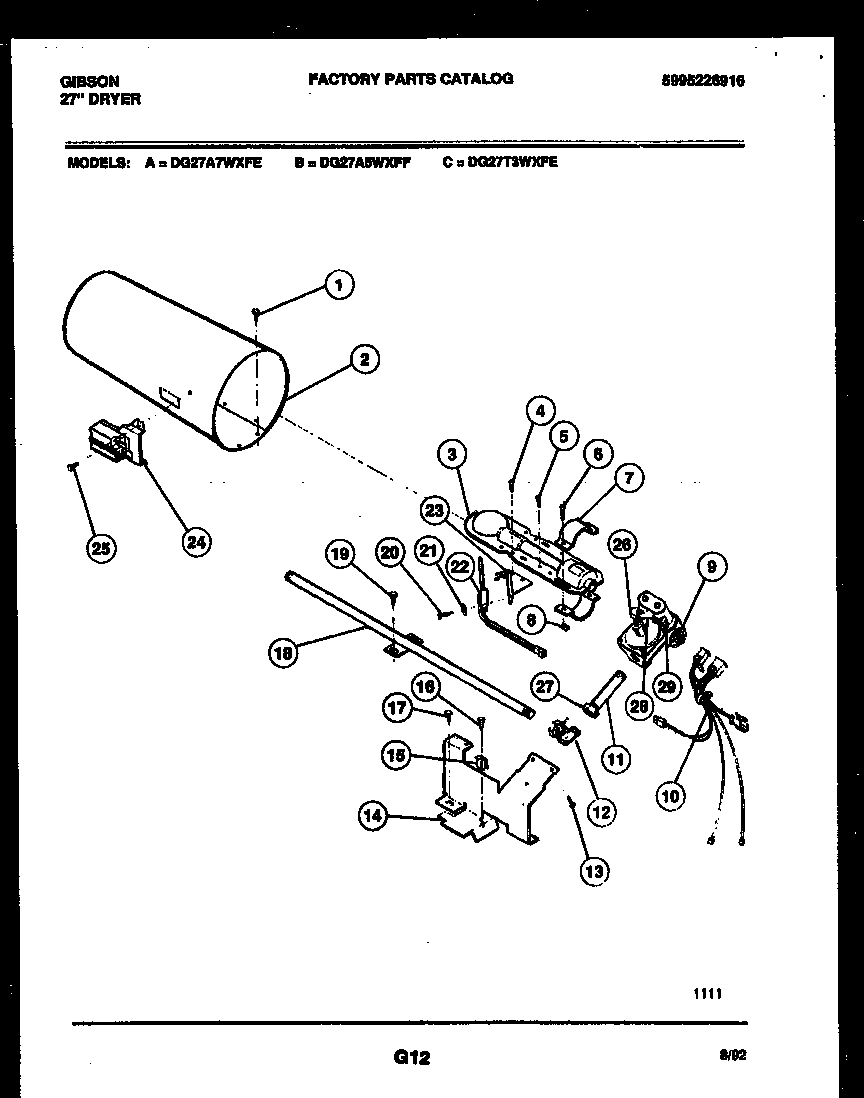

DG27A5WXFF 06 – BURNER, IGNITER AND VALVE

Products

Position	Product
2	TUBE ASSY BURNER
3	134264900 Frigidaire Burner
7	WCI 5303281138
8	WCI 5303281148
9	WCI 5303281147
10	HARNESS
11	UNION MALE CONNECTION (1)
12	WCI 5303281146
13	131243800 Frigidaire Screw
14	WCI 5303281145
15	CLIP
18	WCI 08015271
19	WCI 5303010202
20	WCI 5303281150
21	5300809968 Frigidaire Dishwasher P-1 Washer
22	5303937186 Frigidaire Dryer Flat Igniter Assembly
23	WCI 5303281149
24	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25	SCREW
26	ORIFICE - NATURAL GAS
26A	WCI 5300171852
26	WCI 5303281140
27	NUT-HEX UNION
28	5303931775 Frigidaire Dryer Coil Kit
