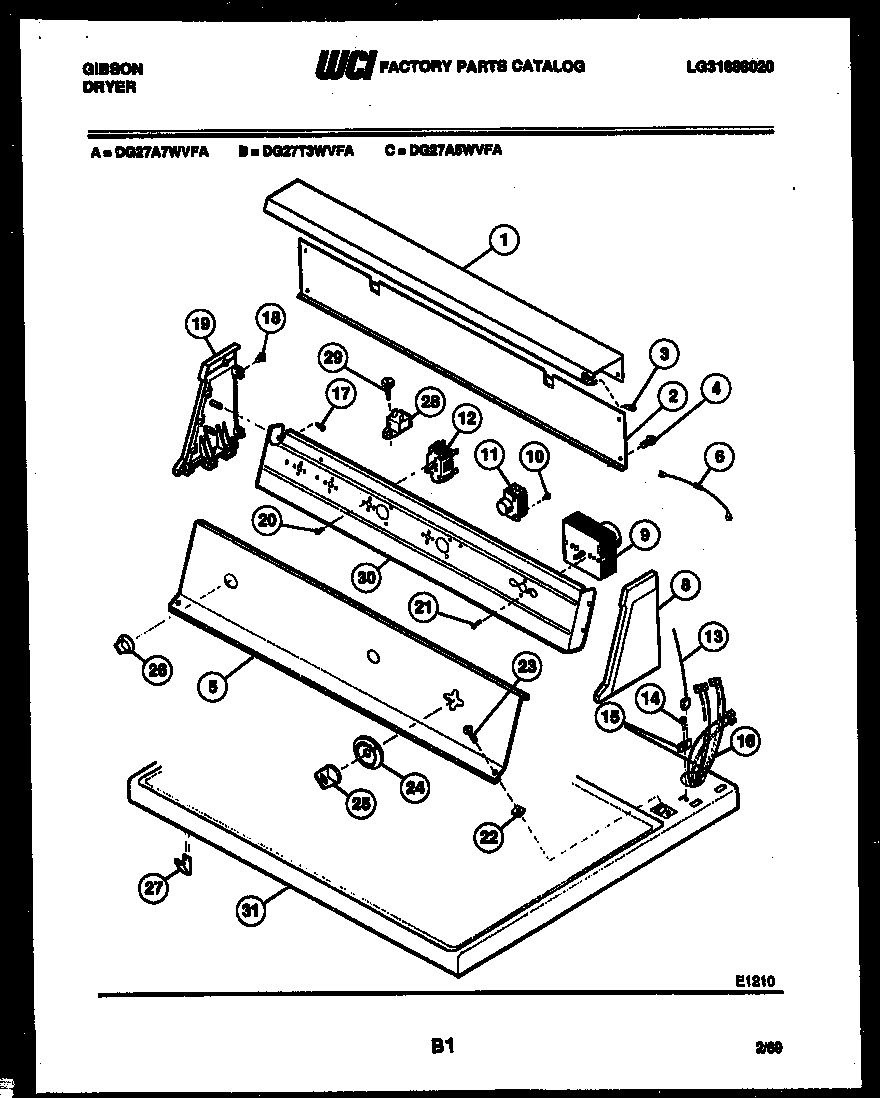

DG27A7WVFA 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201681
2	WCI 3201349
3	WCI 08010825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3201682
8	WCI F139720-000
9	WCI 3201337
10	WCI 08010804
11	WCI 01132293
12	WCI 3201615
13	WIRE-GROUND
14	131243800 Frigidaire Screw
15	WCI 3161198
16	WCI 3201229
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
17	WCI F137858-00
18	WCI F139577-000
19	WCI F139720-100
20	WCI 3161259
21	SCREW (2)
22	WCI 08001912
23	WCI F140203-000
24	WCI 08015702
25	TIMER-KNOB
26	WCI 08008462
27	SPRING CATCH
30	BRACKET-CONTROL
31	PANEL-TOP-WHITE
31	PANEL TOP-ALMOND
