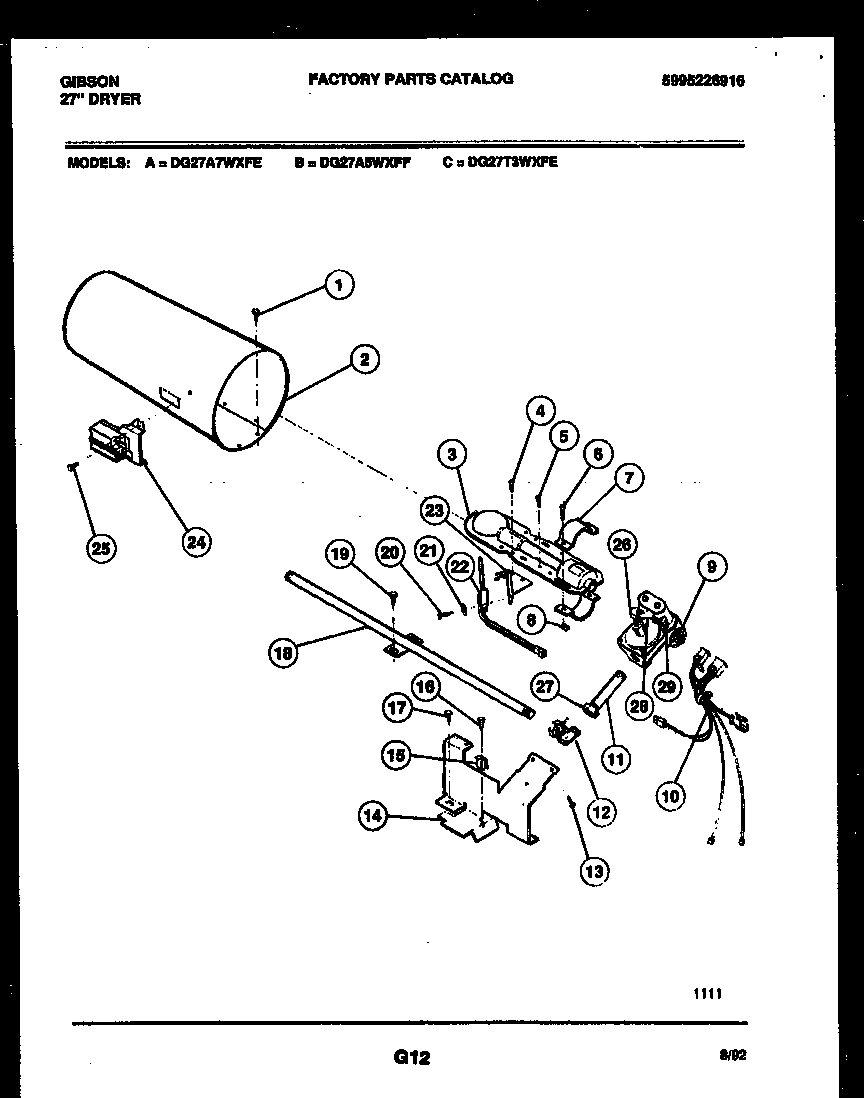

DG27A7WXFE 06 – BURNER, IGNITER AND VALVE

DG27A7WXFE 06 – BURNER, IGNITER AND VALVE

Written by

in

DG27A7WXFE 06 – BURNER, IGNITER AND VALVE

Products

PositionProduct
2TUBE ASSY BURNER
3134264900 Frigidaire Burner
7WCI 5303281138
8WCI 5303281148
9WCI 5303281147
10HARNESS
11UNION MALE CONNECTION (1)
12WCI 5303281146
13131243800 Frigidaire Screw
14WCI 5303281145
15CLIP
18WCI 08015271
19WCI 5303010202
20WCI 5303281150
215300809968 Frigidaire Dishwasher P-1 Washer
225303937186 Frigidaire Dryer Flat Igniter Assembly
23WCI 5303281149
245303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25SCREW
26ORIFICE – NATURAL GAS
26AWCI 5300171852
26WCI 5303281140
27NUT-HEX UNION
285303931775 Frigidaire Dryer Coil Kit
