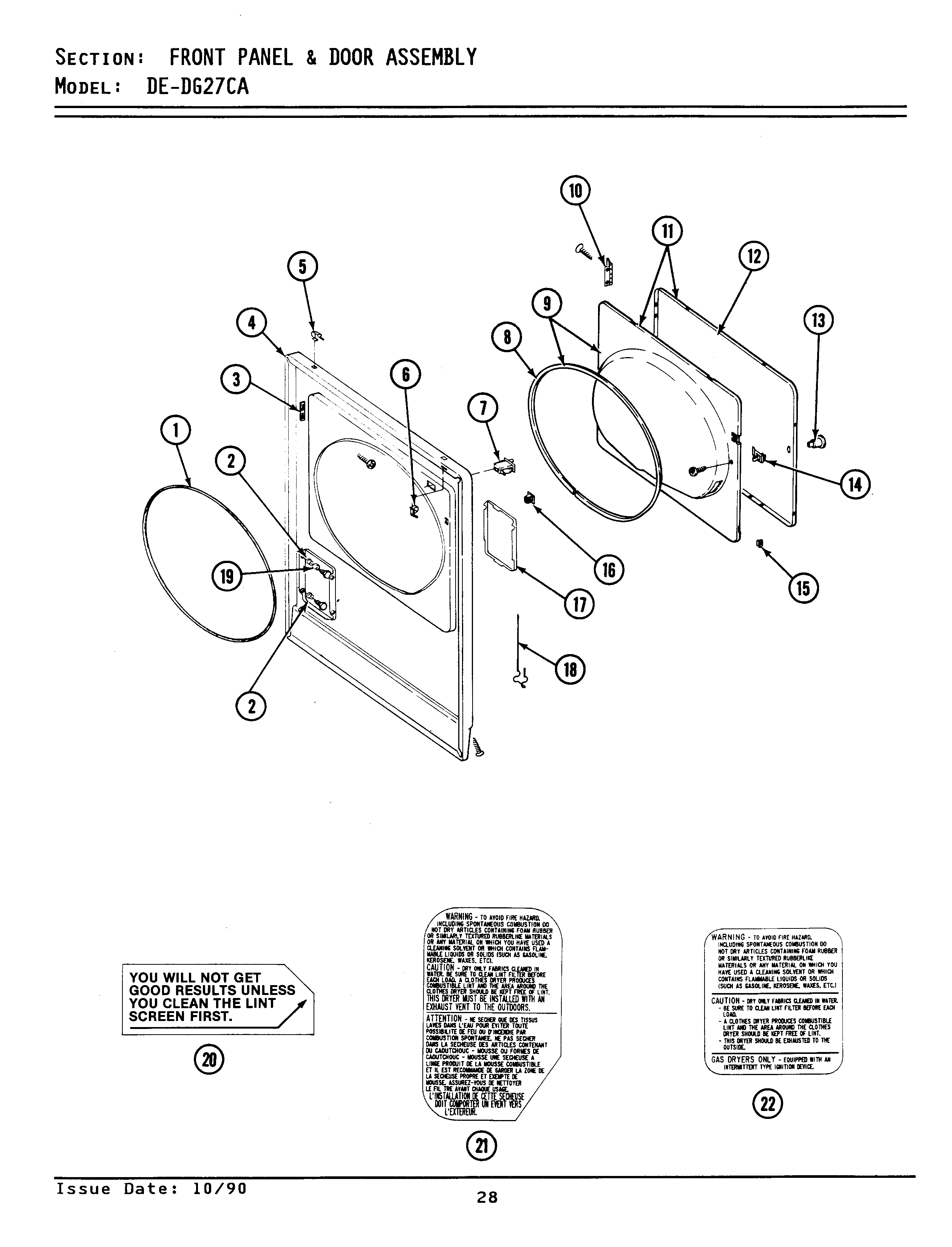

DG27CA 04 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	MAY 314937
003	MAY Y313907
004	SCREW, BUSHINGS
005	MAY 212982
006	MAY Y310376
007	W10169313 Whirlpool Door Switch Kit
008	MAY 314935
009	MAY Y308070
011	MAY 308062
014	MAY 314944
014	MAY 314936
015	CLIP, DOOR LINER
016	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018	LATCH, ACCESS DOOR
019	SLEEVE, ACCESS DOOR RUBBER
020	LABEL, LINT SCREEN INSTR.
021	MAY 314941
022	DOWEL PIN FOR HANDLE
