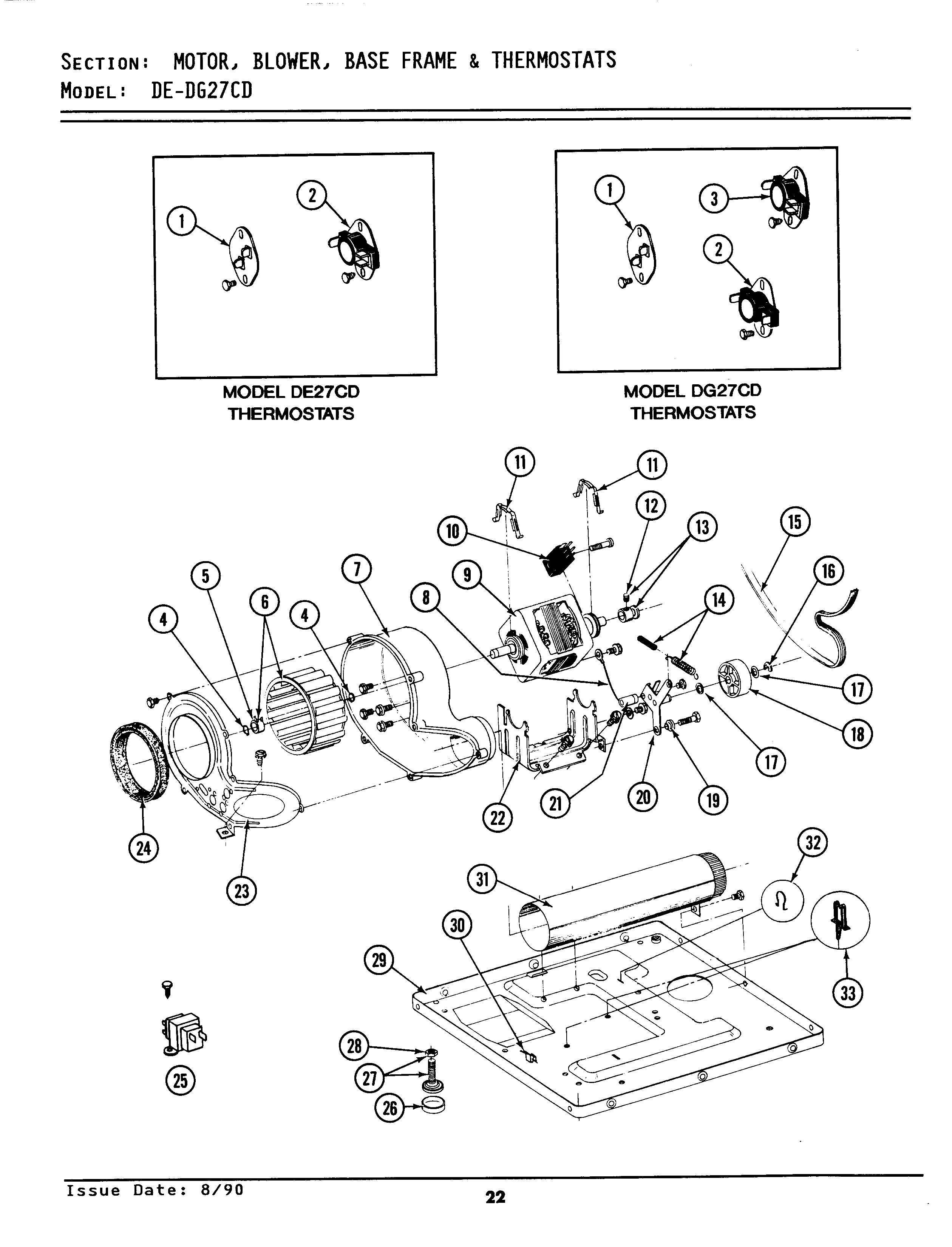

DG27CD 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	MAY 306056
002	WP33303391 Whirlpool Thermostat
003	WP694674 Whirlpool Cycling Thermostat
004	WP9703438 Whirlpool Snap Retaining Ring
005	WP312967 Whirlpool Clamp
006	Y303836 Whirlpool Dryer Blower Wheel
007	MAY Y312893
008	MAY 910343
008	MAY 901220
009	W10410999 Whirlpool Dryer Drive Motor
010	MAY Y303877
010	MAY Y303879
011	WPY015825 Whirlpool Motor Clip
012	MAY Y053241
013	MAY Y305185
014	MAY Y303945
015	WPY312959 Whirlpool Dryer Drum Belt
016	WP354987 Whirlpool C-Clip
017	MAY Y312527
018	WP6-3037050 Whirlpool Idler Pulley
019	SLEEVE, IDLER ARM —-S
020	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
020	WPW10116751 Whirlpool Screw
020	WPY014874 Whirlpool Screw
021	WPW10116756 Whirlpool Spacer
022	DOWEL PIN FOR HANDLE
023	MAY Y312895
023	MAY Y313561
024	WPY312901 Whirlpool Blow Seal
025	MAY Y313559
025	MAY 315218
025	WP90767 Whirlpool Screw
025	MAY 306062
026	WP210684 Whirlpool Dishwasher Leveling Leg Pad
027	LEG, ADJUSTABLE (W/NUT)—S
028	WP210385 Whirlpool Lock Nut
029	MAY 306261
029	MAY Y303361
030	MAY Y310376
031	MAY Y303442
032	MAY 410490
033	MAY Y313262
