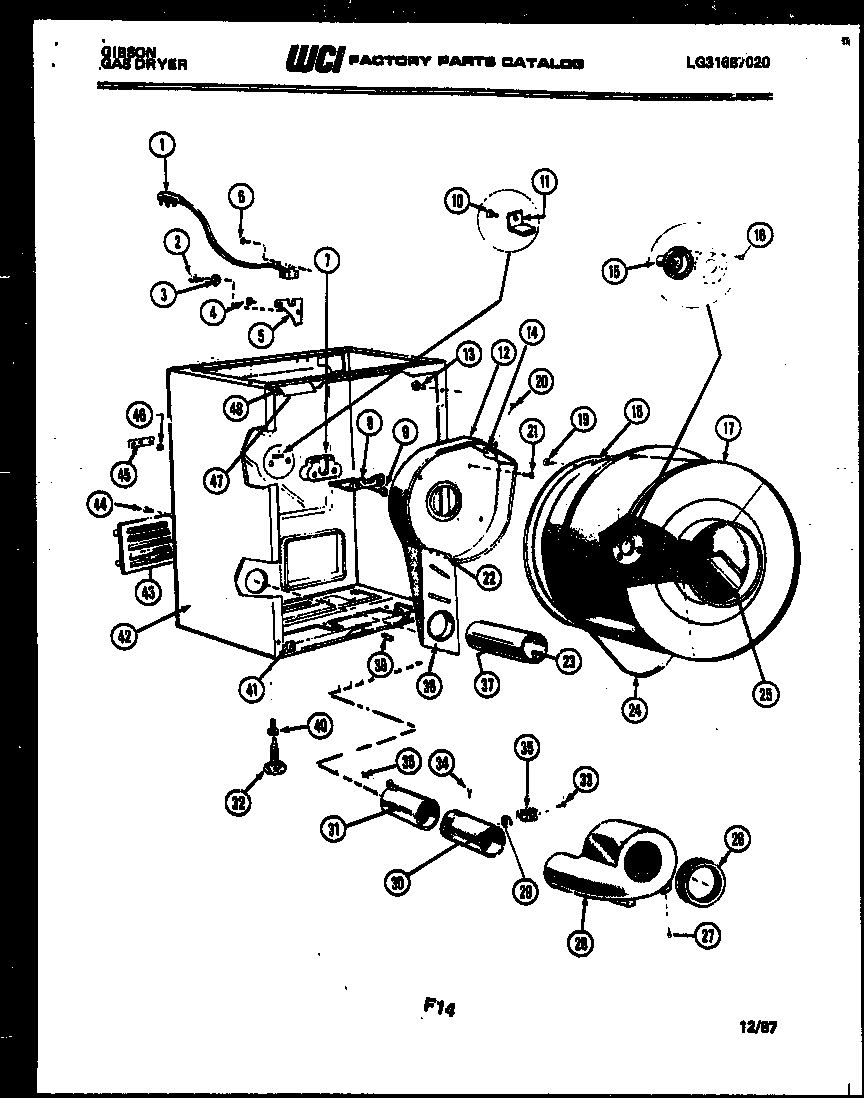

DG27S6FTMA 02 – CABINET, DRUM AND BLOWER HOUSING

DG27S6FTMA 02 – CABINET, DRUM AND BLOWER HOUSING

Written by

in

DG27S6FTMA 02 – CABINET, DRUM AND BLOWER HOUSING

Products

PositionProduct
1WCI WQ612664
2134154100 Frigidaire Screw 10-32 x 0.375 Co
3WCI WQ500411
4WCI WQ403102
5WCI WQ167097
6WCI WQ435152
7AWCI 5303281153]
7131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
8131724301 Frigidaire Dryer Drum Bearing Bracket
9131205400 Frigidaire Screw
11WCI WQ94710
12WCI WQ116972
145308015399 Frigidaire P-1 THERMSTAT-Safety
155303931781 Frigidaire Shaft
16SCREW
17SPINNER BSKT
183204254 Frigidaire Baffle Assembly
19SCREW (3)
20SCREW
245303281154 Frigidaire Dryer Belt (Flat Style)
25V ANE-FRONT (2)
25BSCREW (9) (NON-ILLUSTRATED)
25AVANE-REAR (1) (NON-ILLUSTRATED)
26134417000 Frigidaire Seal
27WCI WQ416306
28FAN HOUSING
29WCI WQ606131
30DUCT, THERMO
31WCI WQ182901
32WCI WQ504971
34WCI WQ505564
35WCI WQ634402
37WCI WQ129482
38WCI WQ116393
39TOGGLE KIT
40GROMM. (FT BOLT)
41WCI WQ505011
42WCI WQ622921
42WCI WQ622925
42WCI WQ622924
42BODY – WHEAT
43WCI WQ94811
44SCREW-BOT PAN (4)
455303281020 Frigidaire Ball Clip
465303281019 Frigidaire Ball Assembly
47WCI WQ623021
48FASTENER
