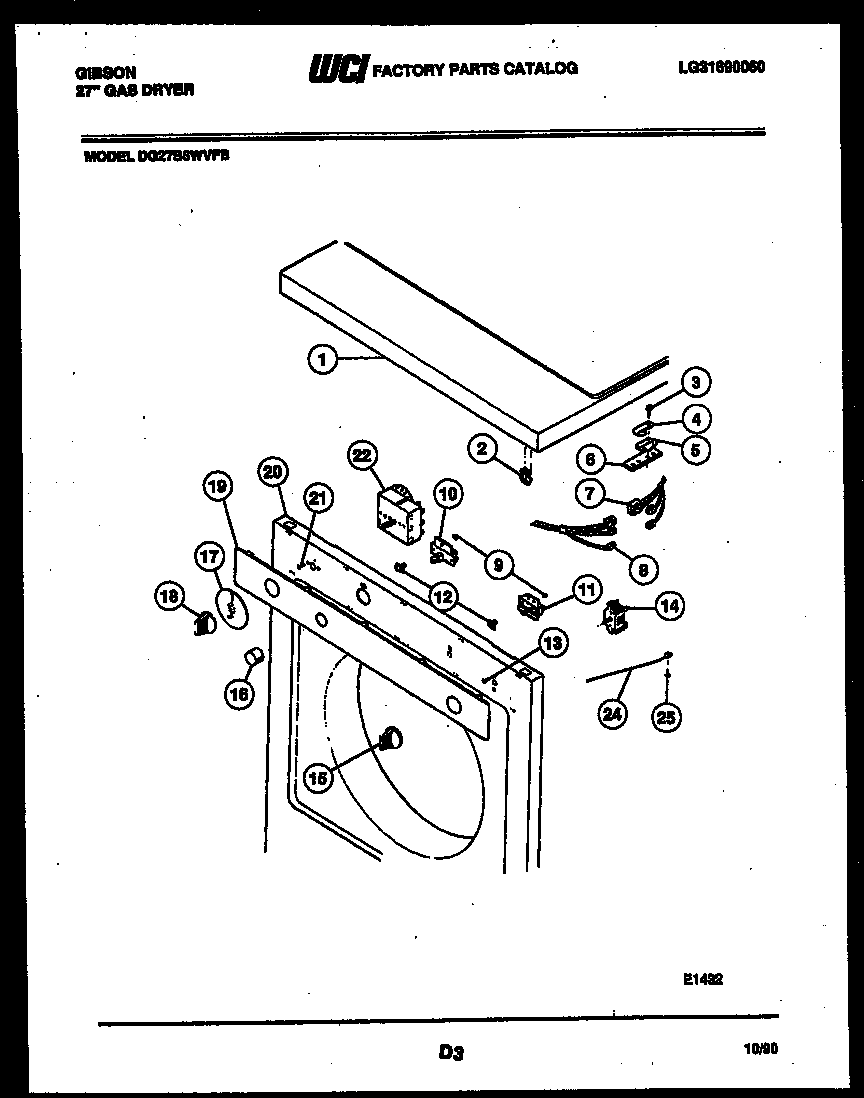

DG27S6WVFB 04 – TOP, CONTROL AND MISCELLANEOUS PART

DG27S6WVFB 04 – TOP, CONTROL AND MISCELLANEOUS PART

Written by

in

DG27S6WVFB 04 – TOP, CONTROL AND MISCELLANEOUS PART

Products

PositionProduct
1WCI 3203243
1WCI 3203244
2SPRING CATCH
3SCREW
4WCI 3281163
5WCI 3281164
6WCI 3281165
7A5303303590 Frigidaire Dryer 4.0" Cable Tie
7WCI 3205700
8WCI 3203246
9WCI 3281089
10WCI 3203247
11WCI 5308004087
12WCI 3281092
13WCI 3281101
14WCI 3281100
15WCI 3203249
16WCI 3201220
17WCI 08027433
18KNOB-TIMER
19WCI 3203250
20WCI 3206227
20WCI 3206228
21SCREW (2)
22AWCI 3281021
22WCI 08027438
22BFASTENER
24WIRE-GROUND
25SCREW (2)
