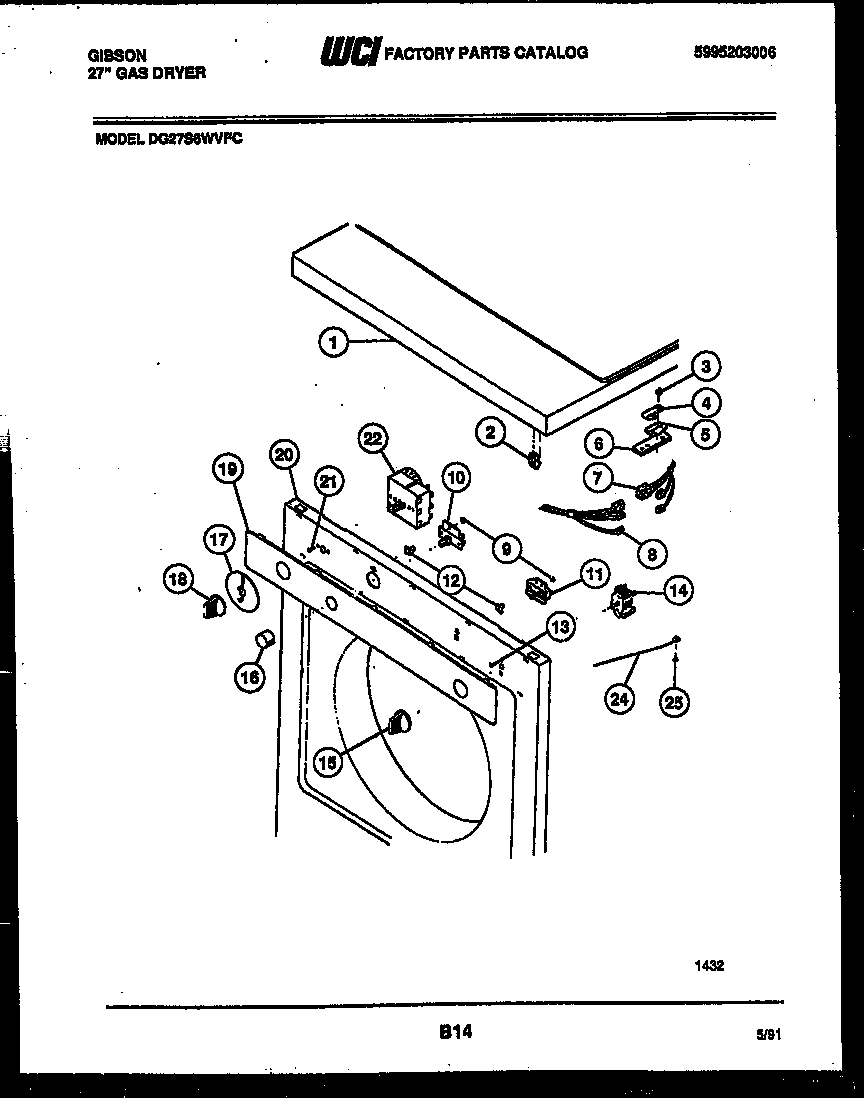

DG27S6WVFC 04 – TOP/FRONT PANELS

DG27S6WVFC 04 – TOP/FRONT PANELS

Written by

in

DG27S6WVFC 04 – TOP/FRONT PANELS

Products

PositionProduct
NIWCI 3281173
NISCREW (2)
NIWCI 3203253
NIWCI 3281171
NI316008401 Frigidaire Washer P-1
1WCI 3203243
1WCI 3203244
2SPRING CATCH
3SCREW
4WCI 3281163
5WCI 3281164
6WCI 3281165
7WCI 5303269980
7A5303303590 Frigidaire Dryer 4.0" Cable Tie
8WCI 5303270878
9WCI 3281089
10WCI 3203247
11WCI 5308004087
12WCI 3281092
13WCI 3281101
14WCI 3281100
15WCI 3203249
16WCI 3201220
17WCI 08027433
18KNOB-TIMER
19WCI 3203250
20WCI 5303270873
20WCI 5303270872
21SCREW (2)
22WCI 08027438
22AWCI 3281021
22BFASTENER
24WIRE-GROUND
