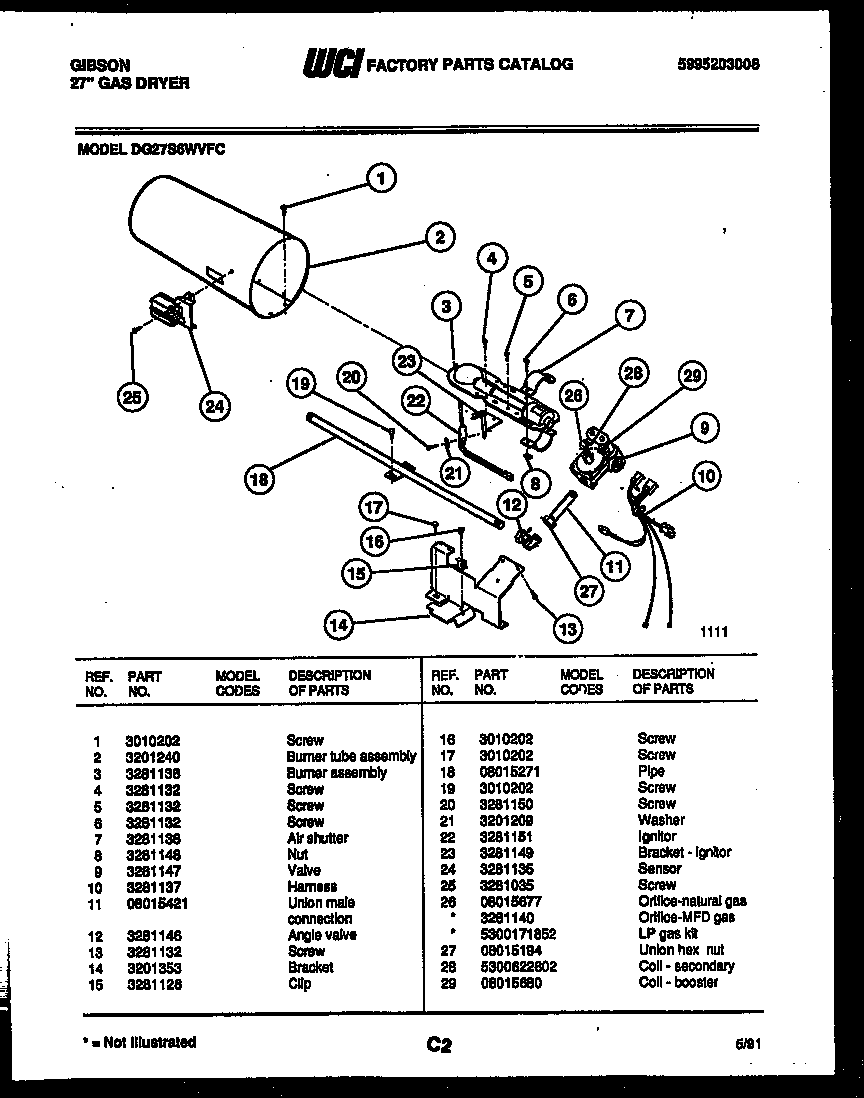

DG27S6WVFC 06 – BURNER, IGNITER AND VALVE

Products

Position	Product
NI	WCI 3281140
NI	WCI 5300171852
2	TUBE ASSY BURNER
3	134264900 Frigidaire Burner
7	AIR SHUTTER (2)
8	NUT (2)
9	VALVE (1)
10	HARNESS (1)
11	UNION MALE CONNECTION (1)
12	ANGLE VALVE (1)
13	131243800 Frigidaire Screw
14	BRACKET (1)
15	CLIP
18	WCI 08015271
19	SCREW (4)
20	SCREW (1)
21	5300809968 Frigidaire Dishwasher P-1 Washer
22	5303937186 Frigidaire Dryer Flat Igniter Assembly
23	BRACKET-IGNITOR (1)
24	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25	SCREW (2)
26	ORIFICE - NATURAL GAS
27	NUT-HEX UNION
29	5303931775 Frigidaire Dryer Coil Kit
