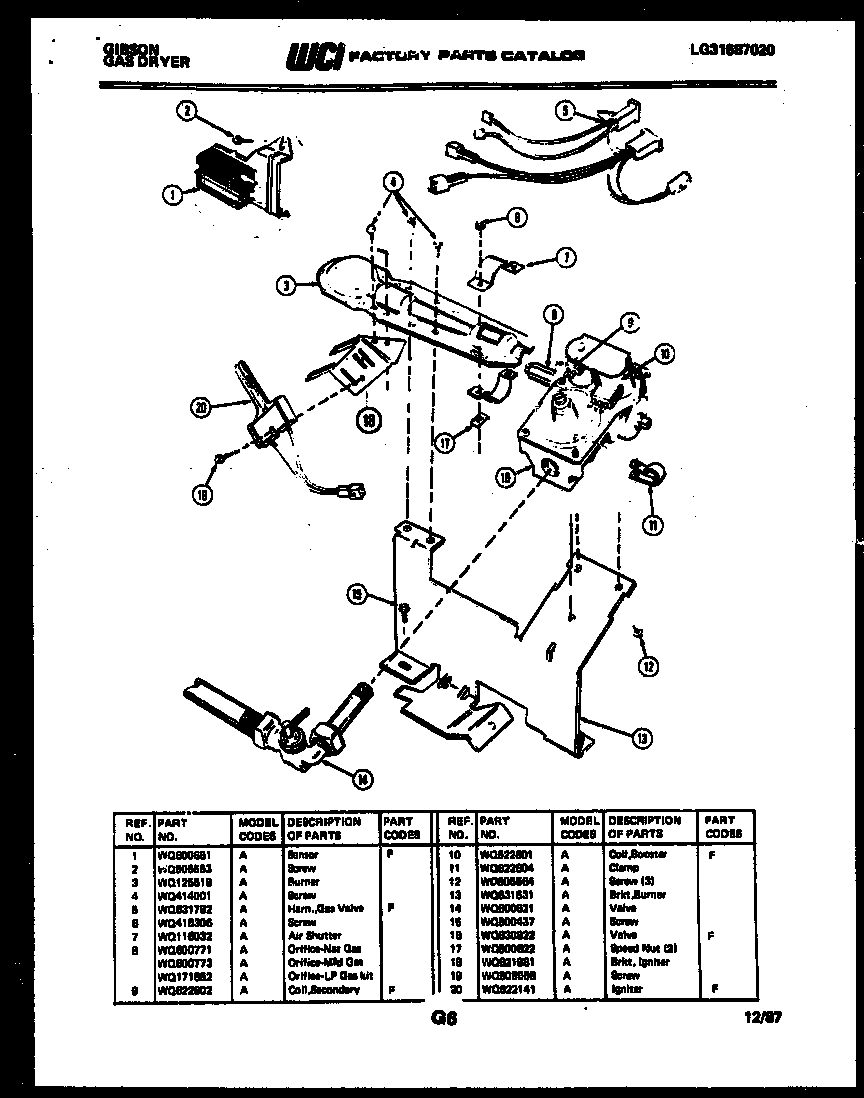

DG27S6YTMA 05 – BURNER, IGNITER AND VALVE

DG27S6YTMA 05 – BURNER, IGNITER AND VALVE

Written by

in

DG27S6YTMA 05 – BURNER, IGNITER AND VALVE

Products

PositionProduct
15303281135 Frigidaire Gas Dryer Flame Sensor Radiant
2SCREW-BOT PAN (4)
3134264900 Frigidaire Burner
4131243800 Frigidaire Screw
5WCI WQ631782
6WCI WQ416306
7WCI WQ116032
8AWCI WQ600773
8WCI WQ600771
8BWCI WQ171852
105303931775 Frigidaire Dryer Coil Kit
11240396801 Frigidaire Refrigerator Tube Clamp
12WCI WQ505564
13WCI WQ631531
14WCI WQ600621
15WCI WQ500437
16WCI WQ630822
17WCI WQ500622
18WCI WQ621981
19WCI WQ505556
205303937186 Frigidaire Dryer Flat Igniter Assembly
