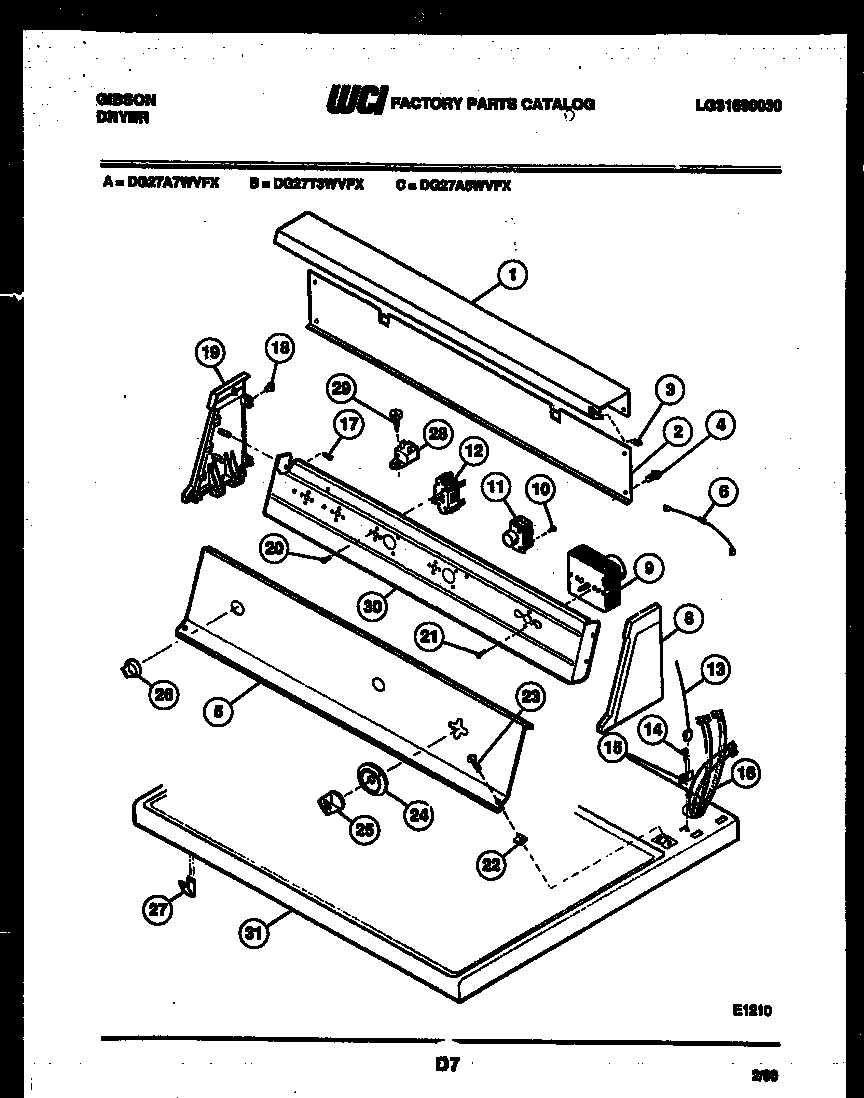

DG27T3WVFX 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201681
2	WCI 3201349
3	WCI 08010825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 5303209164
8	END CAP & TRM ASSY RH
9	WCI 3201614
10	WCI 08010804
11	WCI 01132293
13	WIRE-GROUND
14	131243800 Frigidaire Screw
15	WCI 3161198
16	WCI 3205983
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
17	WCI F137858-00
18	WCI F139577-000
19	WCI 5303209166
21	SCREW (2)
22	CLIP
23	WCI 3205820
24	WCI 08015702
25	TIMER-KNOB
27	3205821 Frigidaire Clip
30	WCI 3205822
31	PANEL-TOP ALMD
31	PANEL TOP-WHITE
