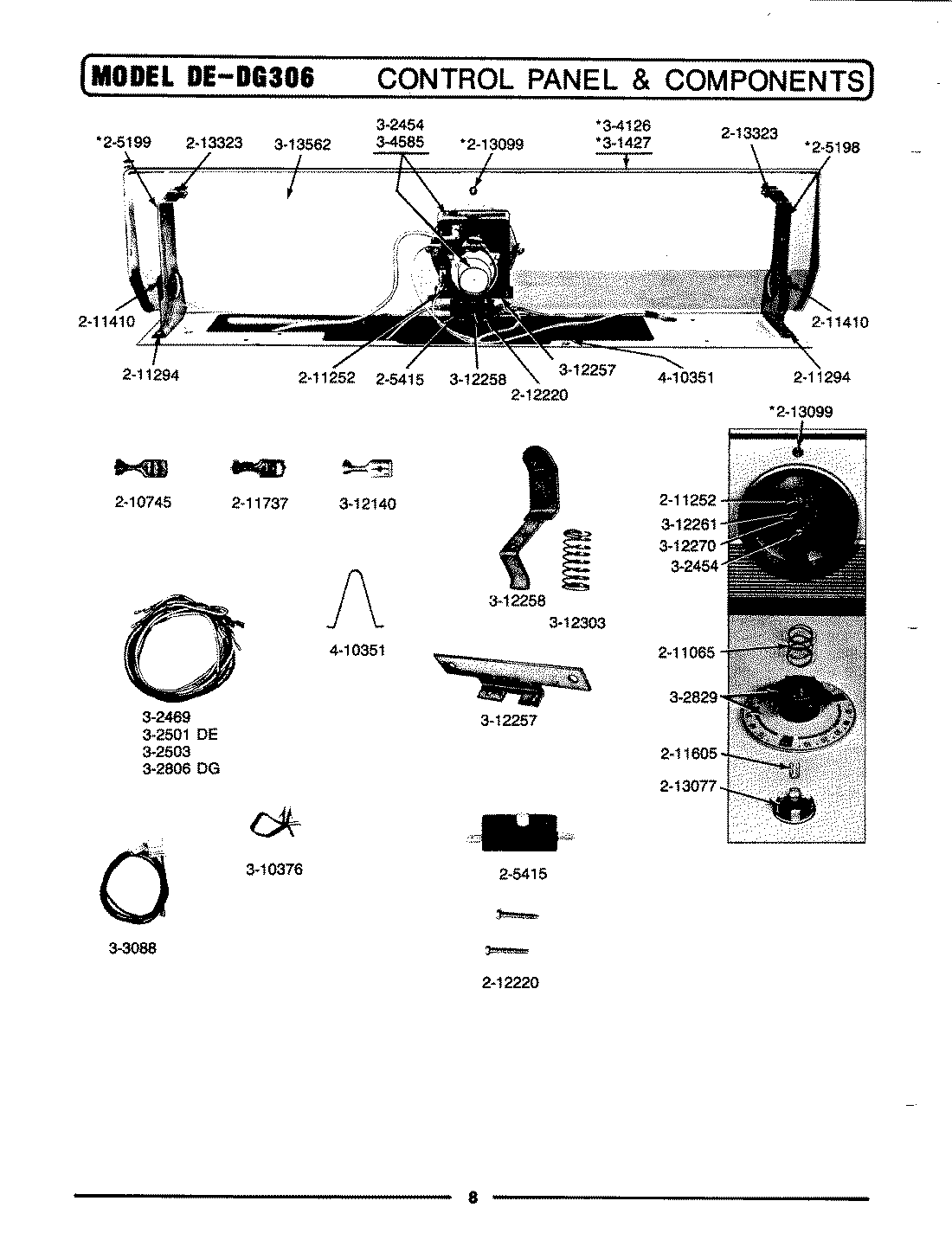

DG306 04 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	MAY 205198
2	MAY 205199
3	W10820036 Whirlpool Door Switch Kit
4	MAY 210745
5	WP211065 Whirlpool Timer Spring
6	WP489399 Whirlpool Refrigerator Screw
7	WP90767 Whirlpool Screw
8	MAY 211410
9	MAY 211605
10	MAY 211737
11	MAY 212220
12	MAY 213077
13	MAY 213099
14	MAY 213323
15	MAY Y302454
16	HARNESS FOR SHROUD
17	MAY 302501
18	MAY 302503
19	MAY 302806
20	MAY Y302829
21	MAY 303088
22	MAY 304126
23	MAY 304127
24	MAY Y304585
25	MAY Y310376
26	MAY Y312140
27	BRACKET
28	MAY 312258
29	WASHER
30	MAY Y312270
31	MAY 312303
32	MAY 313562
33	MAY 410351
