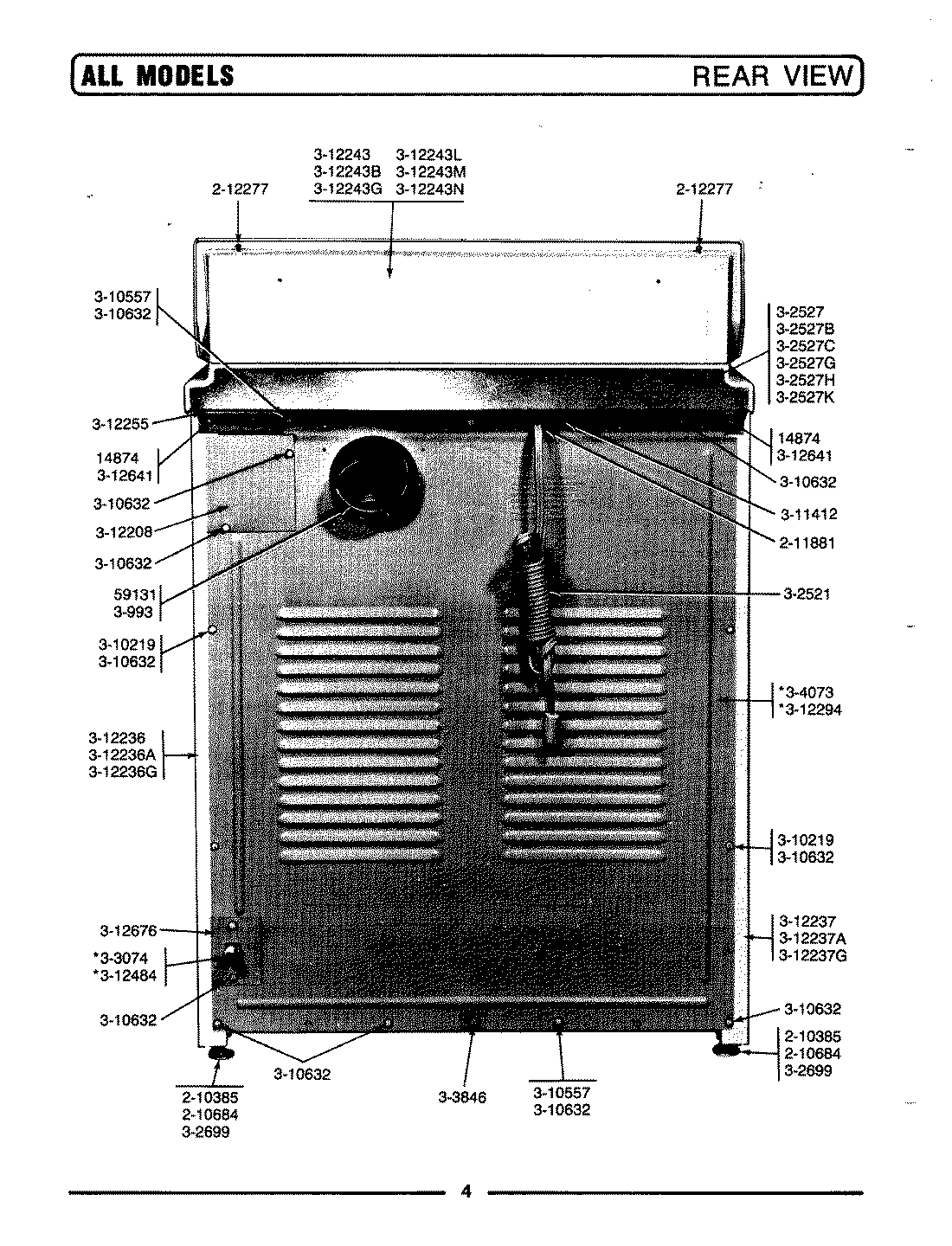

DG306 11 – REAR VIEW

Products

Position	Product
1	MAY Y059131
2	MAY Y201808
3	WP210385 Whirlpool Lock Nut
4	WP210684 Whirlpool Dishwasher Leveling Leg Pad
5	GROMMET
6	MAY 300993
7	MAY 301548
8	MAY 302521
9	TOP COVER-WHITE
10	MAY 302527B
11	MAY 302527C
12	PART NOT USED
13	MAY 302527H
14	MAY 302527K
15	LEG, ADJUSTABLE (W/NUT)—S
16	MAY 303074
17	WPY014874 Whirlpool Screw
18	MAY 303846
19	BACK PANEL
20	MAY 310219
21	MAY 310557
22	MAY Y310632
23	WP311155 Whirlpool Wire Assembly
24	SCREW
28	MAY 312208
30	MAY 312236
31	MAY 312236A
32	MAY 312236G
33	PANEL-WHITE
34	MAY 312237A
35	MAY 312237G
36	MAY 312243
37	MAY 312243B
38	MAY 312243G
39	MAY 312243L
40	MAY 312243M
41	MAY 312243N
42	MAY 312255
43	BACK FOR CABINET
44	MAY Y312484
45	MAY Y312641
46	MAY 312676
47	MAY 313122
49	WP1163283 Whirlpool Air Conditioner Screw
