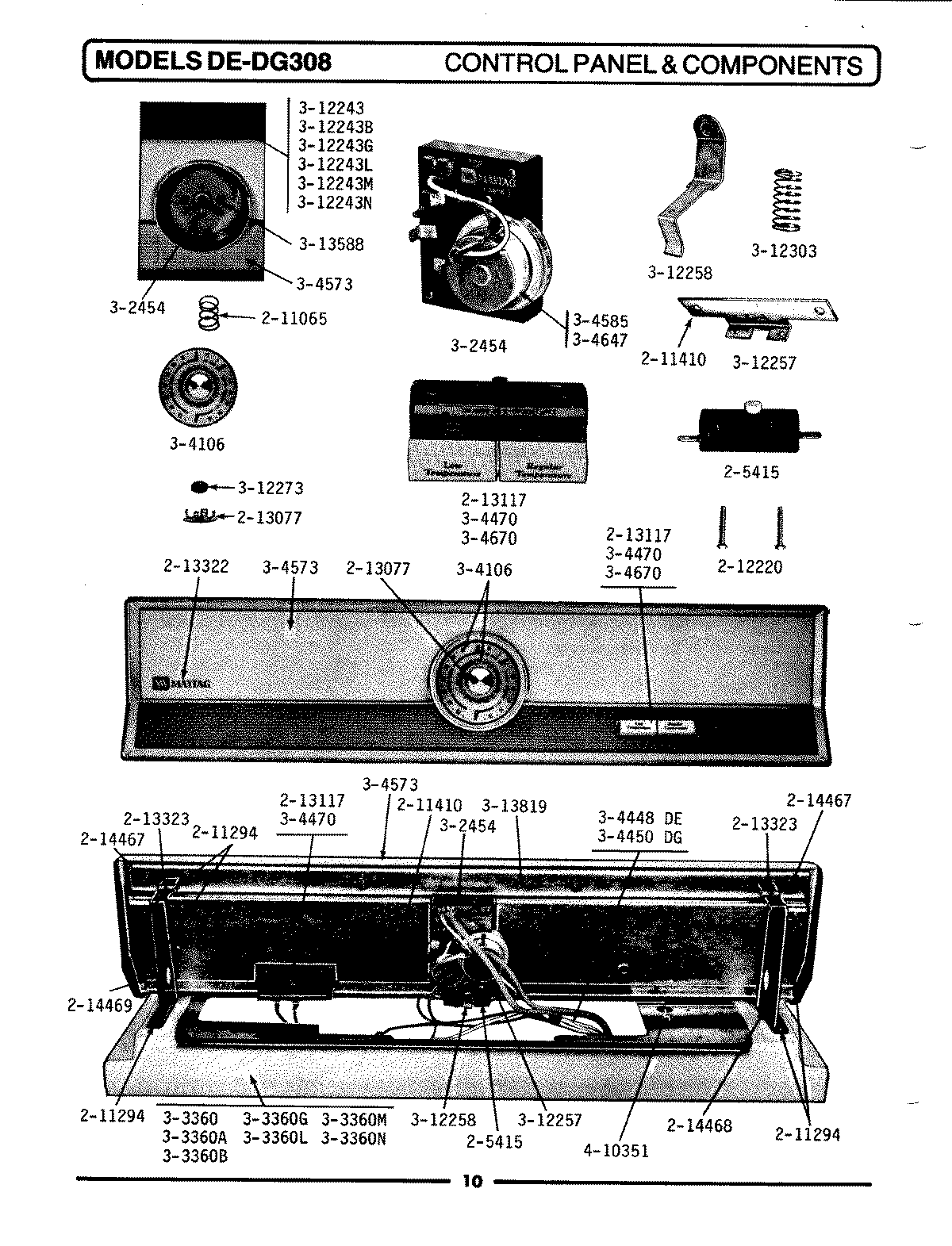

DG308 02 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	W10820036 Whirlpool Door Switch Kit
2	WP211065 Whirlpool Timer Spring
3	WP90767 Whirlpool Screw
4	MAY 211410
5	MAY 212220
6	MAY 213077
7	WP67006908 Whirlpool Refrigerator Screw
8	MAY 213322
9	MAY 213323
10	MAY 214467
11	MAY 214468
12	MAY 214469
13	MAY Y302454
14	TOP COVER-WHITE
15	MAY 303360A
16	MAY 303360B
17	MAY 303360G
18	MAY 303360L
19	MAY 303360M
20	MAY 303360N
21	MAY Y304106
22	MAY 304450
23	MAY 304470
24	MAY 304573
25	MAY Y304585
26	MAY 304647
27	BUTTON KIT
28	MAY 312243
29	MAY 312243B
30	MAY 312243G
31	MAY 312243L
32	MAY 312243M
33	MAY 312243N
34	BRACKET
35	MAY 312258
36	W10155650 Whirlpool Nut
37	MAY 312303
38	WP488234 Whirlpool Air Conditioner Screw
39	BACK-UP PLATE
40	MAY 410351
