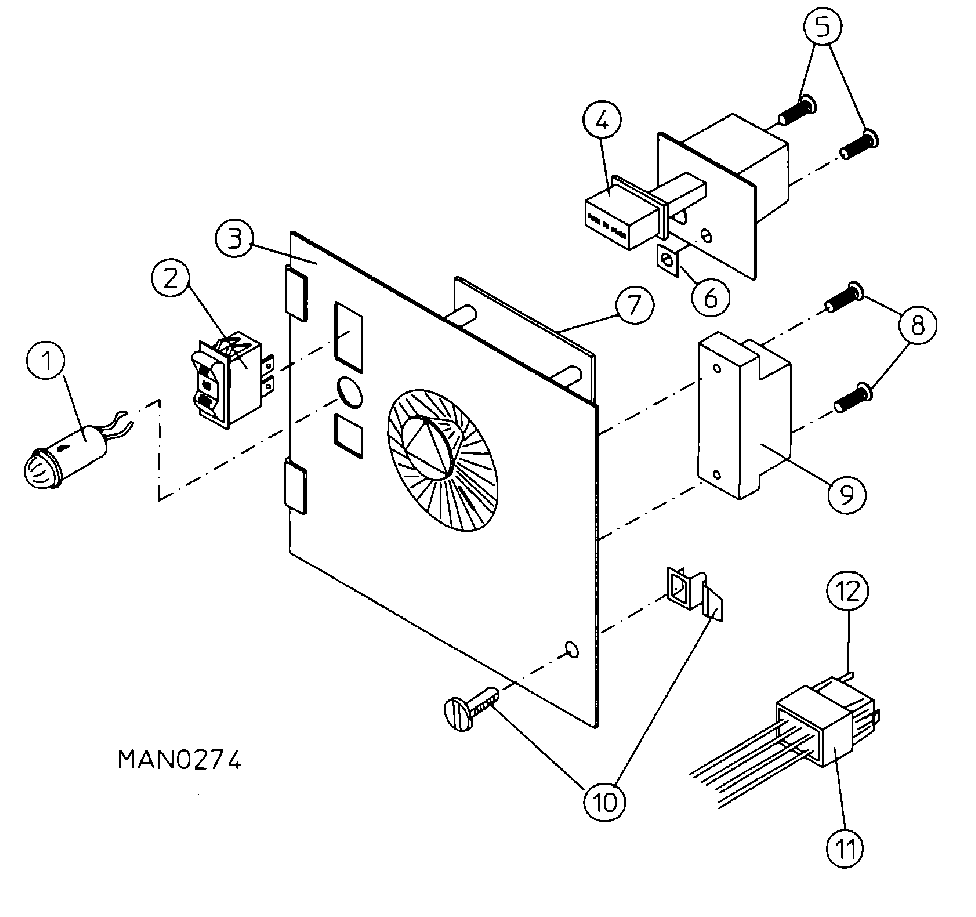

DG30MC1 02 – CONTROL PANEL ASSEMBLY (COIN METER)

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY A122801
001	MAY A123000
002	MAY A122400
003	MAY A800070
003	MAY A800054
004	MAY A131812
005	MAY A150207
006	MAY A154001
007	MAY A125000
008	MAY A150303
009	MAY A120712
010	LATCH, SPRING TURN (2-PIECE) (CHECK LABEL ON COMPUTER CHIP
011	MAY A122602
012	MAY A122700
