DG30MC1 09 – LINT DOOR ASSEMBLY (DG30/50)
Written by
in

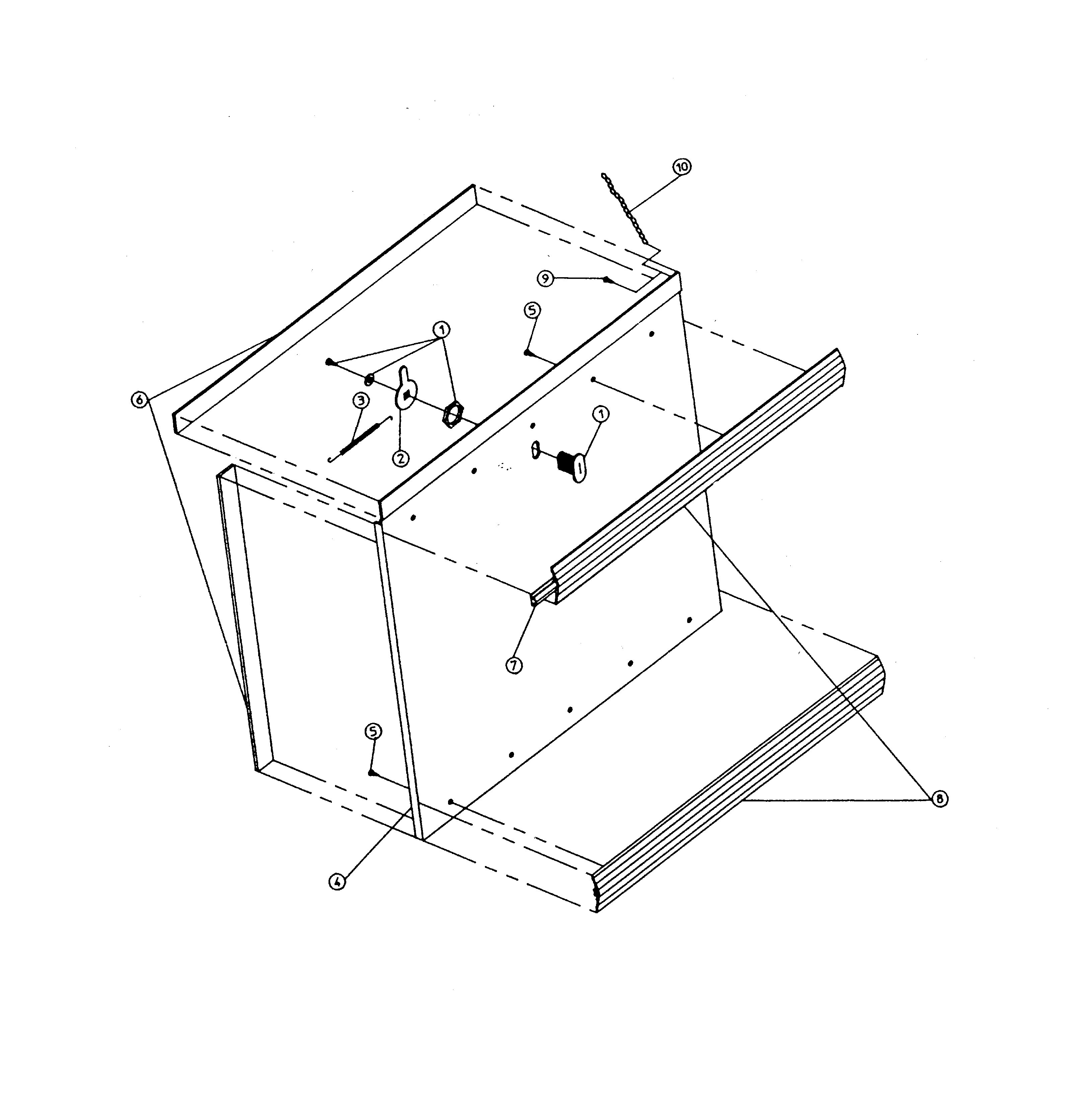

DG30MC1 09 – LINT DOOR ASSEMBLY (DG30/50)
Products
| Position | Product |
|---|---|
| NI | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | KNOB LATCH KIT ASSY. |
| 001 | MAY A160200 |
| 001 | MAY A160039 |
| 001 | MAY A160003 |
| 001 | MAY A160140 |
| 002 | MAY A160009 |
| 002 | MAY A160008 |
| 002 | MAY A150425 |
| 003 | MAY A157000 |
| 004 | MAY A800219 |
| 004 | MAY A800216 |
| 004 | MAY A800232 |
| 004 | MAY A800233 |
| 005 | MAY A150201 |
| 006 | MAY A117600 |
| 007 | MAY A102307 |
| 008 | MAY A180210 |
| 008 | MAY A180211 |
| 009 | MAY A150415 |
| 010 | MAY A108120 |
