DG30MC1 13 – MOTOR MOUNT ASSEMBLY (DG50/30)
Written by
in

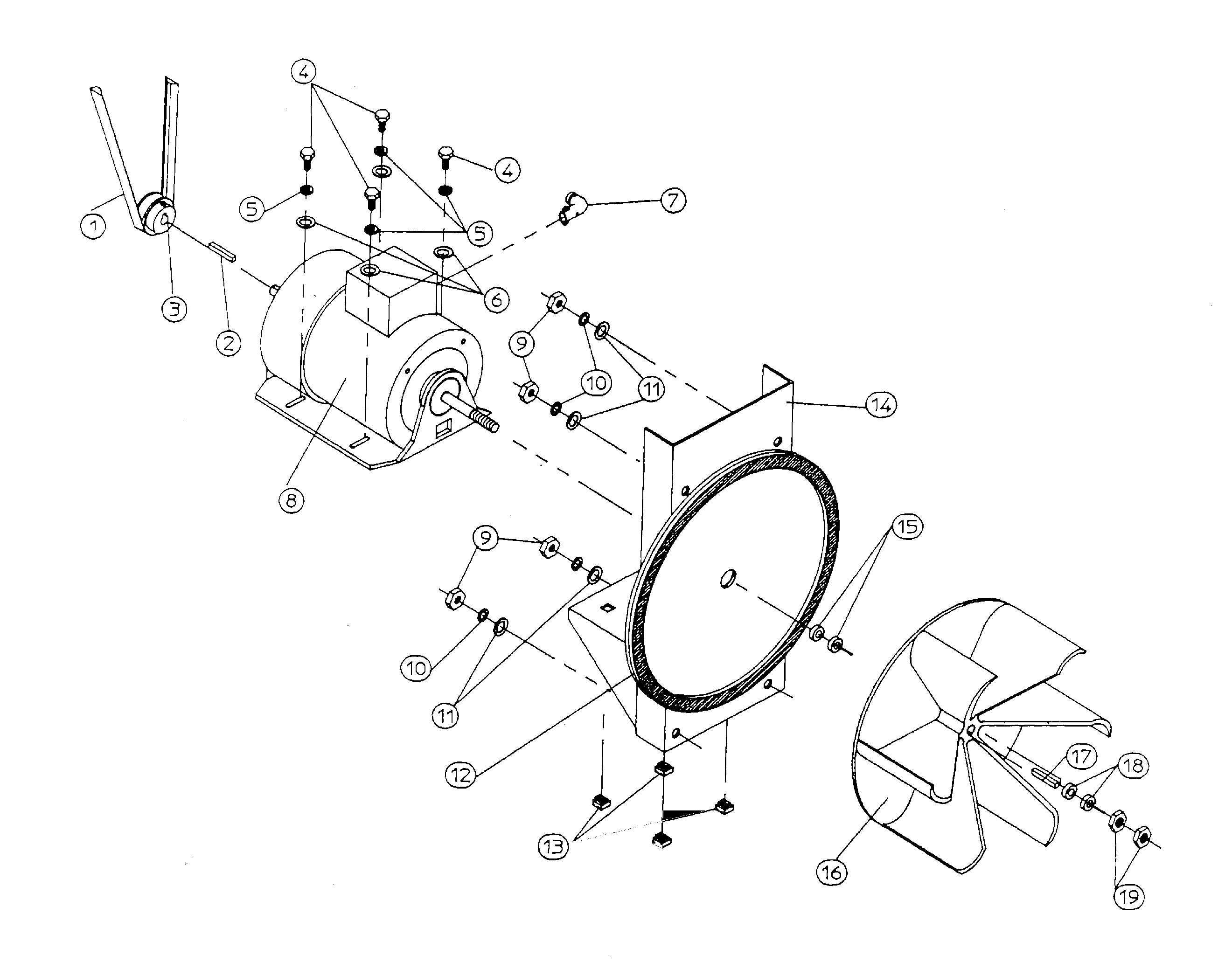

DG30MC1 13 – MOTOR MOUNT ASSEMBLY (DG50/30)
Products
| Position | Product |
|---|---|
| NI | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A100112 |
| 001 | MAY A100110 |
| 002 | MAY A100701 |
| 003 | MAY A101133 |
| 003 | MAY A101104 |
| 004 | MAY A150501 |
| 007 | MAY A120200 |
| 008 | MAY A100033 |
| 008 | MAY A100065 |
| 009 | MAY A152004 |
| 010 | MAY A153002 |
| 011 | MAY A153001 |
| 012 | MAY A117600 |
| 013 | MAY A154000 |
| 014 | MAY A800905 |
| 014 | MAY A800903 |
| 014 | MAY A803852 |
| 014 | MAY A803938 |
| 016 | MAY A100604 |
| 017 | MAY A100702 |
| 018 | WASHER, FLAT (1/2“) QUANTITY AS REQUIRED |
| 019 | MAY A152006 |
| 019 | MAY A137030 |
| 019 | MAY A122701 |
| 019 | MAY A837007 |
