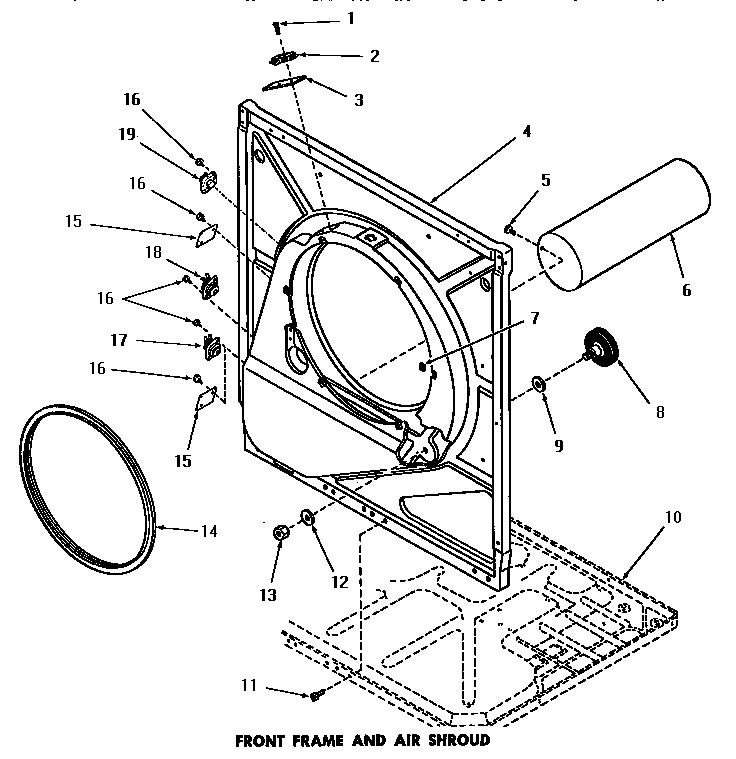

DG3240 13 – FRONT FRAME & AIR SHROUD

DG3240 13 – FRONT FRAME & AIR SHROUD

Written by

in

DG3240 13 – FRONT FRAME & AIR SHROUD

Products

PositionProduct
1MAY 51783
2MAY Y51143
3MAY 52112
4MAY 51850
5MAY 52150
6MAY 51821
7MAY 52865
8MAY 53555
9MAY 52123
10SEE NOTE GROUND WIRE, GREEN
11MAY 51784
12MAY 52122
13MAY 52124
14MAY 51798
15MAY 52550
16WP3177991 Whirlpool Screw
17MAY 54736
17MAY 51880
18MAY 54737
18MAY 52393
19MAY 53708
