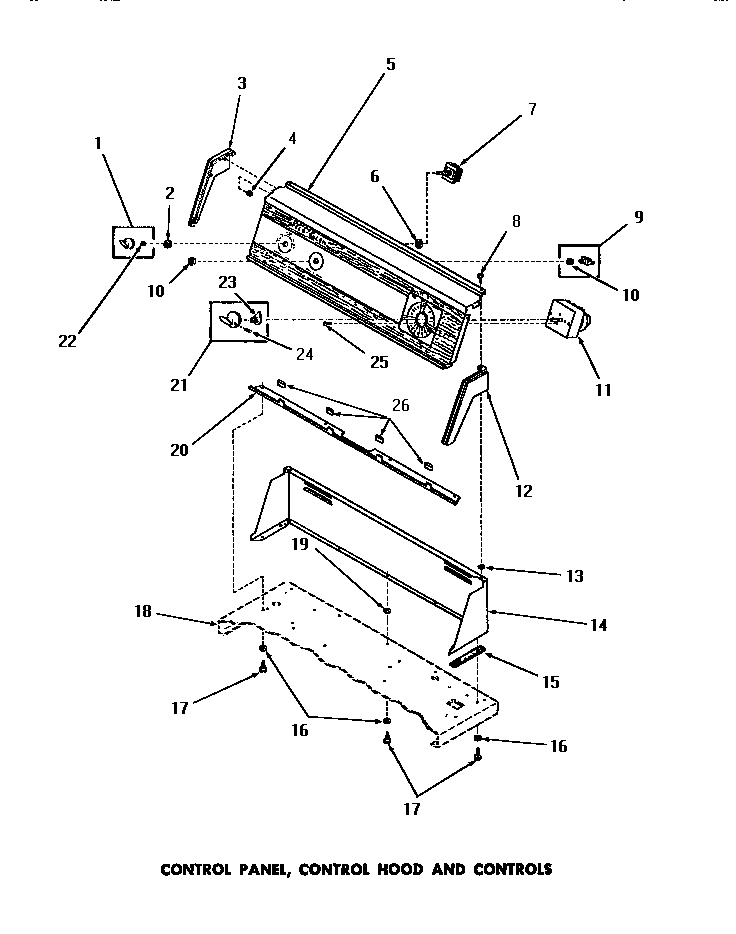

DG3250 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

DG3250 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

DG3250 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

PositionProduct
1MAY 22245
2MAY 24205
3MAY 25124
4MAY 25126
5MAY Y0053958
6MAY 91176
7MAY 53380
8MAY 25232
9MAY 53768
10MAY 52947
11MAY 52167
12MAY 25123
13MAY 24522
14MAY 53446W
14MAY 53446A
14MAY 53446C
14MAY 53446H
15MAY 23028
16MAY 20493
17WP90767 Whirlpool Screw
18SEE NOTE GROUND WIRE, GREEN
19MAY 23425
20MAY 52912
21MAY 24858
22MAY 22244
23MAY 24857
24MAY 25285
25MAY 70212
26MAY 24859
