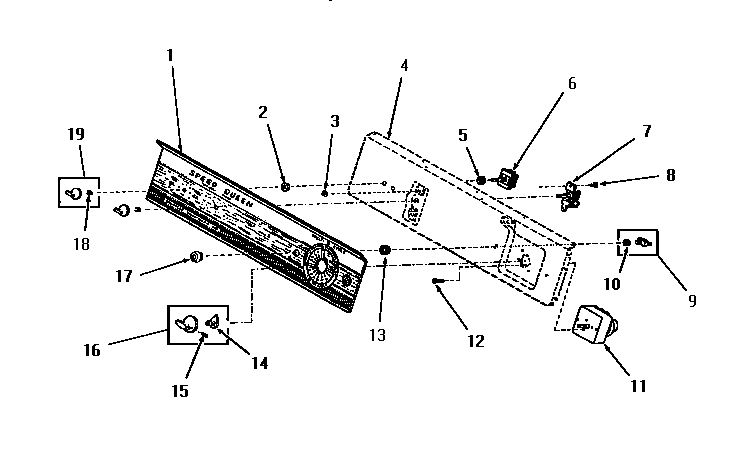

DG3291 10 – CONTROL PANEL AND CONTROLS

DG3291 10 – CONTROL PANEL AND CONTROLS

Written by

in

DG3291 10 – CONTROL PANEL AND CONTROLS

Products

Position	Product
1	MAY 0054749
1	MAY Y0053888
2	MAY 24391
3	MAY 23407
4	SEE NOTE GROUND WIRE, GREEN
5	MAY 91176
6	MAY 52623
7	MAY 53516
8	WP90767 Whirlpool Screw
9	MAY 53563
10	MAY 52947
11	MAY 52610
11	MAY 53466
12	MAY 70212
13	MAY 23406
14	MAY 24857
15	MAY 25285
16	MAY 24858
17	MAY 23130
18	MAY 23392
19	MAY 23402
