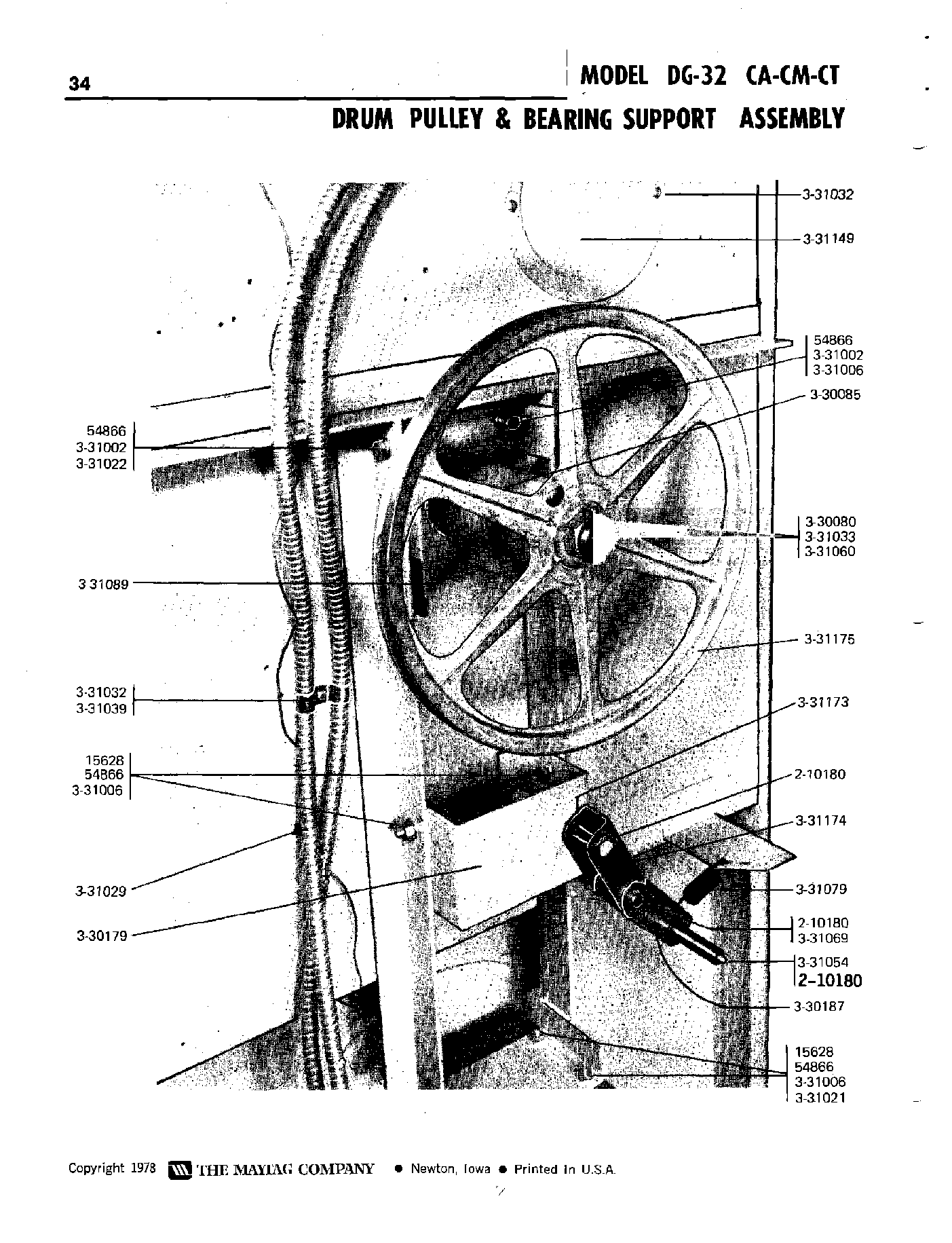

DG32CM 15 – DRUM PULLEY & BEARING SUPPORT ASSEMBLY
Written by
in
DG32CM 15 – DRUM PULLEY & BEARING SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 002 | MAY Y054866 |
| 003 | MAY Y330080 |
| 004 | MAY Y330085 |
| 005 | MAY Y330179 |
| 006 | IDLER ARM ASSEMBLY W/PIN |
| 012 | MAY 331032 |
| 013 | MAY 331033 |
| 015 | GREASE FITTING – PULLEY PIN |
| 016 | MAY 331060 |
| 017 | MAY 331069 |
| 018 | MAY 331079 |
| 019 | MAY 331089 |
| 020 | DOWEL PIN FOR HANDLE |
| 021 | WASHER |
| 022 | IDLER BRACKET |
| 023 | MAY 331175 |
| 024 | MAY 210180 |
