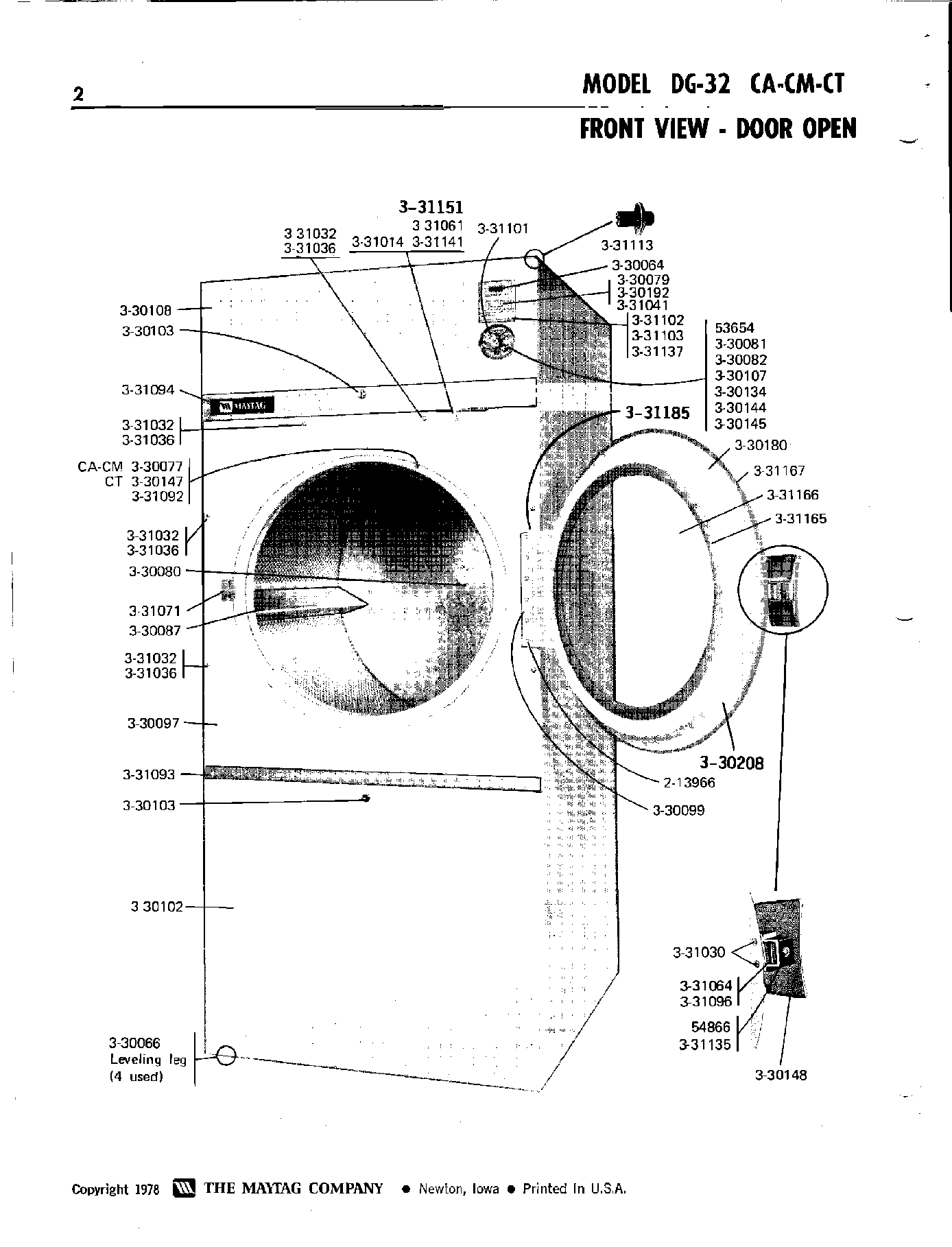

DG32CT 01 – FRONT VIEW-DOOR OPEN
Written by
in
DG32CT 01 – FRONT VIEW-DOOR OPEN
Products
| Position | Product |
|---|---|
| 003 | MAY Y054866 |
| 004 | WP3400014 Whirlpool Dishwasher Screw |
| 005 | MAY Y330064 |
| 007 | MAY Y330077 |
| 008 | MAY Y330079 |
| 009 | MAY Y330080 |
| 010 | MAY 330081 |
| 011 | MAY Y330082 |
| 012 | MAY Y330087 |
| 015 | MAY Y330102 |
| 016 | MAY Y330103 |
| 021 | MAY Y330145 |
| 022 | MAY Y330147 |
| 026 | SWITCH, PUSH TO START |
| 027 | MAY 331014 |
| 029 | MAY 331032 |
| 030 | WASHER-FRONT PANEL SCREWS |
| 031 | MAY 331041 |
| 034 | MAY 331061 |
| 036 | MAY 331064 |
| 037 | STRIKE PLATE FOR DOOR |
| 038 | MAY 331083 |
| 043 | MAY 331101 |
| 049 | DOWEL PIN FOR HANDLE |
| 050 | MAY 331151 |
| 051 | MAY 331165 |
| 052 | MAY 331166 |
| 053 | MAY 331167 |
