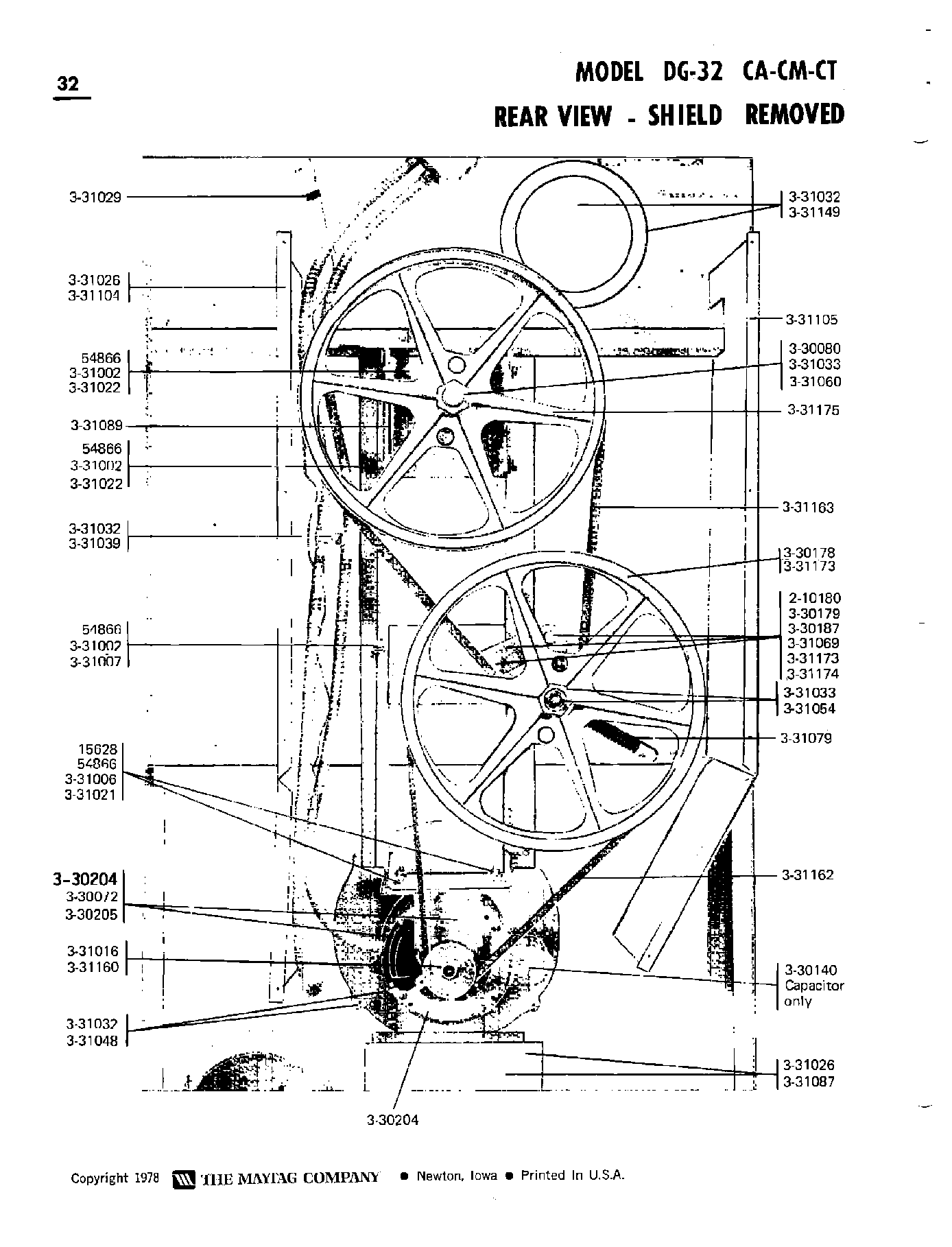

DG32CT 15 – REAR VIEW-SHIELD REMOVED
Products
| Position | Product |
|---|---|
| 002 | MAY Y052749 |
| 003 | MAY Y054866 |
| 004 | MAY 210180 |
| 005 | MAY Y330080 |
| 006 | MAY Y330072 |
| 007 | MAY Y330087 |
| 009 | MAY Y330178 |
| 010 | MAY Y330179 |
| 011 | IDLER ARM ASSEMBLY W/PIN |
| 020 | MAY 331026 |
| 022 | MAY 331032 |
| 023 | MAY 331033 |
| 025 | MAY 331048 |
| 026 | GREASE FITTING - PULLEY PIN |
| 027 | MAY 331060 |
| 028 | MAY 331069 |
| 030 | MAY 331079 |
| 032 | MAY 331089 |
| 035 | DOWEL PIN FOR HANDLE |
| 036 | MAY 331160 |
| 037 | MAY 331162 |
| 038 | V BELT - REDUCTION |
| 039 | WASHER |
| 040 | IDLER BRACKET |
| 041 | MAY 331175 |
