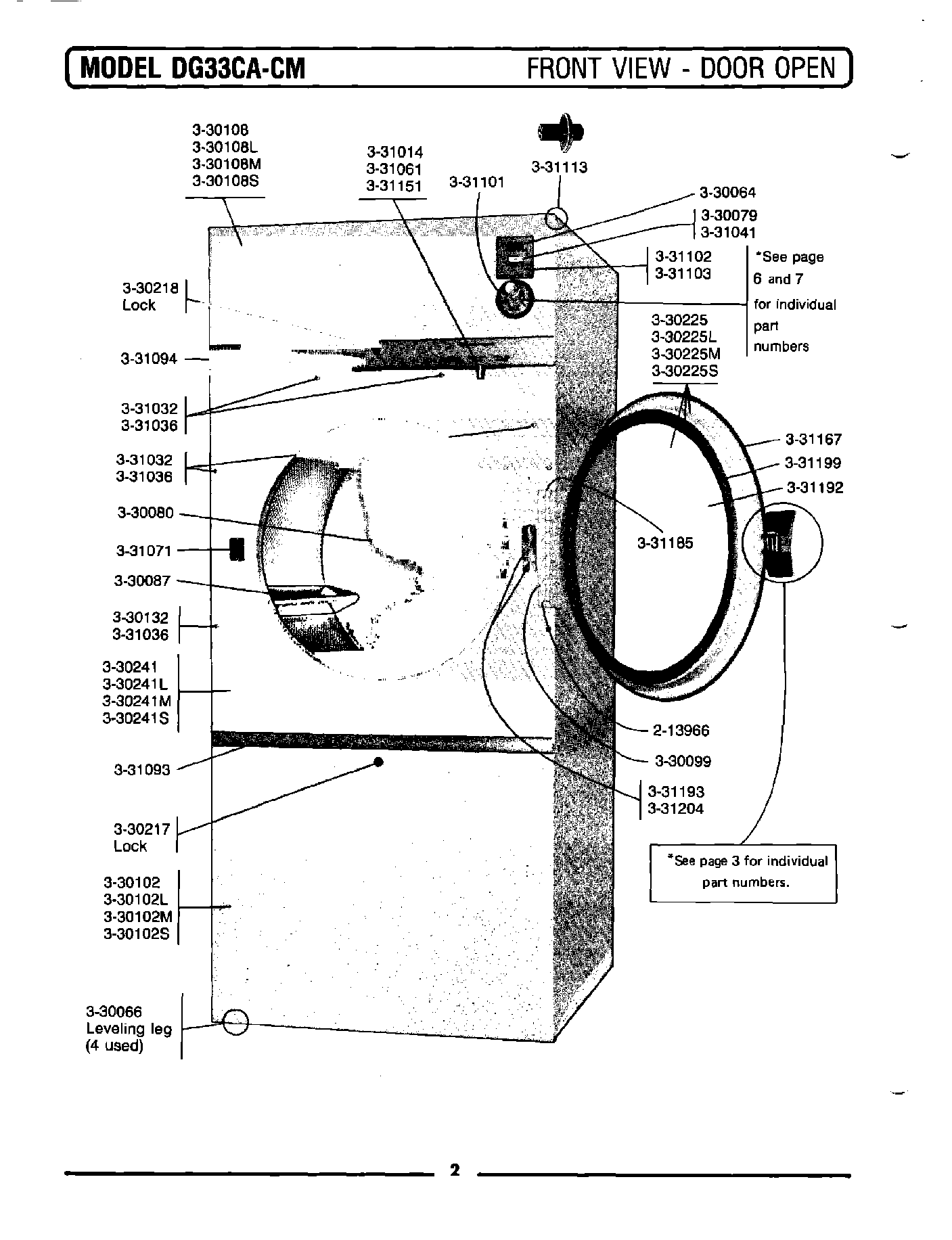

DG33CA 01 – FRONT VIEW-DOOR OPEN
Products
| Position | Product |
|---|---|
| 001 | WP3400014 Whirlpool Dishwasher Screw |
| 002 | MAY Y330064 |
| 004 | MAY Y330079 |
| 005 | MAY Y330080 |
| 006 | MAY Y330087 |
| 008 | MAY Y330102 |
| 012 | MAY 330108L |
| 013 | MAY 330108M |
| 014 | MAY Y330217 |
| 015 | MAY Y330218 |
| 019 | MAY Y330241 |
| 020 | MAY 330241L |
| 022 | MAY 331014 |
| 023 | MAY 331032 |
| 024 | WASHER-FRONT PANEL SCREWS |
| 025 | MAY 331041 |
| 026 | MAY 331061 |
| 027 | MAY 331064 |
| 028 | STRIKE PLATE FOR DOOR |
| 032 | MAY 331101 |
| 035 | MAY 331151 |
| 036 | MAY 331167 |
| 037 | MAY 331185 |
| 038 | MAY 331192 |
| 039 | COVER FOR DOOR SWITCH BOX |
| 040 | GASKET FOR DOOR GLASS |
| 041 | MAY 331200 |
| 042 | MAY 331204 |
| 044 | DOWEL PIN FOR HANDLE |
