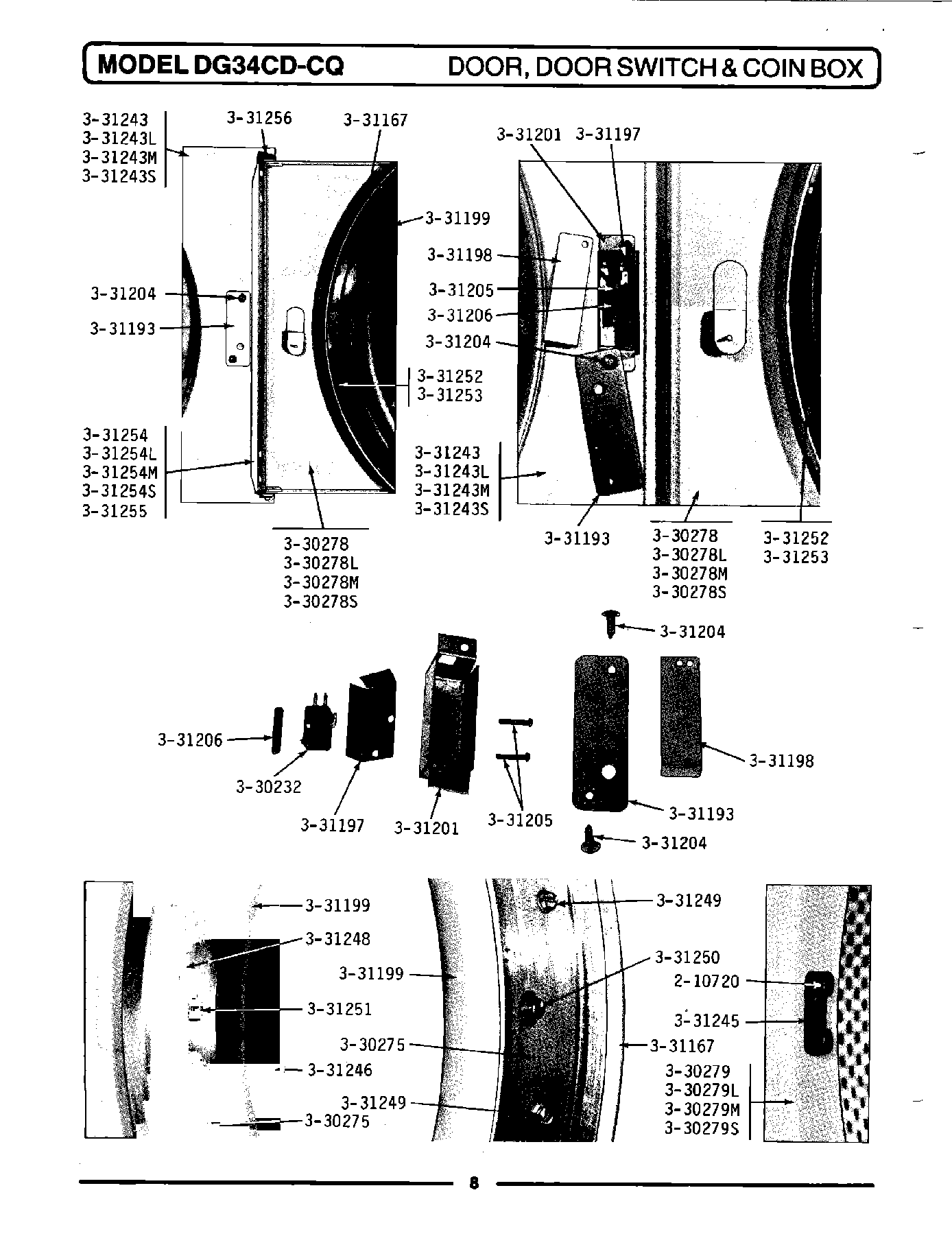

DG34CD 04 – DOOR, DOOR SWITCH, & COIN BOX

DG34CD 04 – DOOR, DOOR SWITCH, & COIN BOX

Written by

in

DG34CD 04 – DOOR, DOOR SWITCH, & COIN BOX

Products

Position	Product
001	WP210720 Whirlpool Rivet
002	MAY Y330232
003	MAY Y330275
005	MAY 330276L
015	MAY 330279S
016	MAY 331167
017	COVER FOR DOOR SWITCH BOX
018	SHIELD FOR DOOR SWITCH
019	ACTUATOR FOR DOOR SWITCH
020	GASKET FOR DOOR GLASS
021	MAY 331201
022	MAY 331204
026	MAY 331243L
029	MAY 331245
030	MAY 331246
033	MAY 331250
034	WPY707702 Whirlpool Locknut
035	WP3400094 Whirlpool Screw
036	MAY 331253
038	MAY 331254L
042	MAY 331256
044	MAY 331258
046	DOWEL PIN FOR HANDLE
