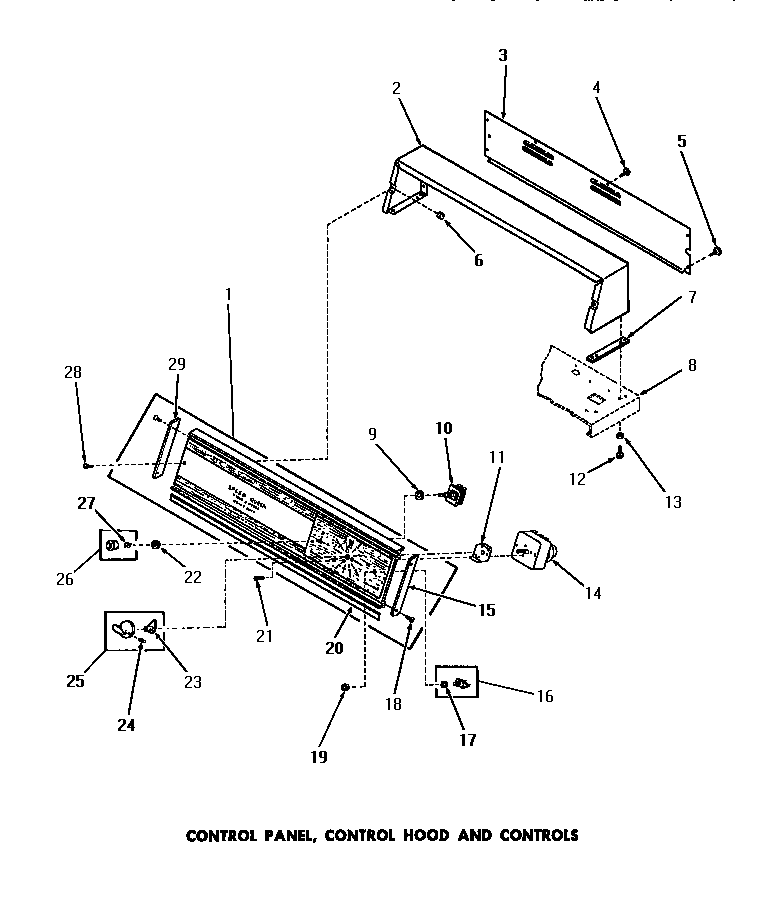

DG3630 09 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

PositionProduct
1MAY Y54971
2MAY 52530W
2MAY 52530H
2MAY 52530A
3MAY 52539GR
4WP3177991 Whirlpool Screw
5MAY 25724
6MAY 54038
7MAY 23028
8SEE NOTE GROUND WIRE, GREEN
9MAY 91176
10MAY 53380
11MAY 25966
12WP90767 Whirlpool Screw
13MAY 20493
14MAY 52594
15MAY 25073
16MAY 53768
18MAY 52864
19MAY 52947
20MAY Y0053880
21MAY Y0054441
22MAY 24205
23MAY 24857
24MAY 25285
25MAY 24858
26MAY 22245
27MAY 22244
28MAY 25232
29MAY 25072
