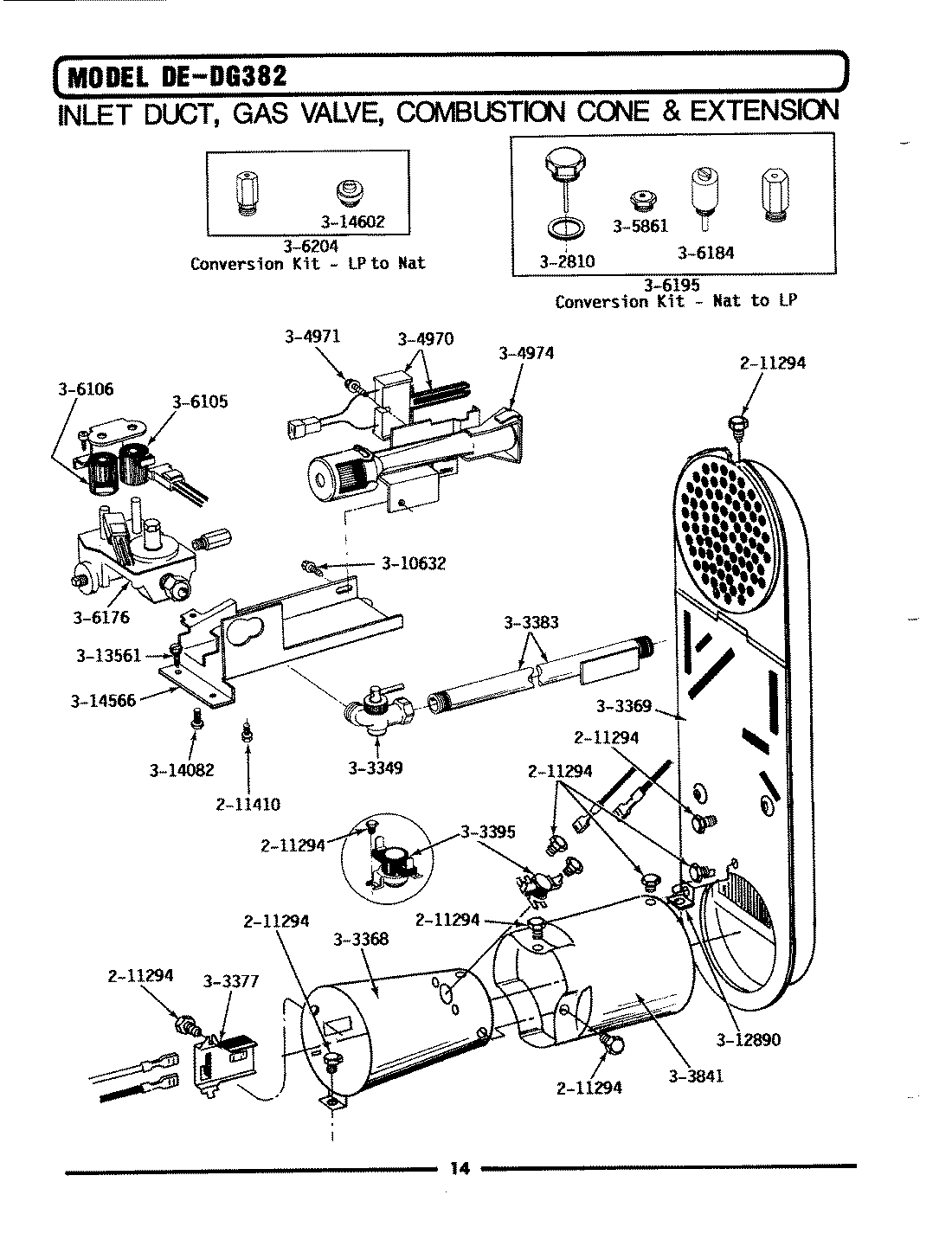

DG382 04 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Products

PositionProduct
1WP90767 Whirlpool Screw
2MAY 211410
3MAY 302810
4MAY Y303349
5MAY Y303368
6MAY Y303369
7WP338906 Whirlpool Dryer Gas Sensor
8MAY Y303383
9WP303395 Whirlpool Thermostat
10MAY Y303841
114391996 Whirlpool Dryer Flat Igniter
12MAY 304971
13MAY 304974
14MAY 305861
15279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
17WP306176 Whirlpool Gas Valve
18MAY 306184
19CONVERSION KIT (NAT.TO LP)
20WP33002924 Whirlpool LP Conversion Gas
21MAY Y310632
22MAY Y312890
23MAY Y313561
24MAY 314082
25MAY 314566
26WP694424 Whirlpool Limiter
