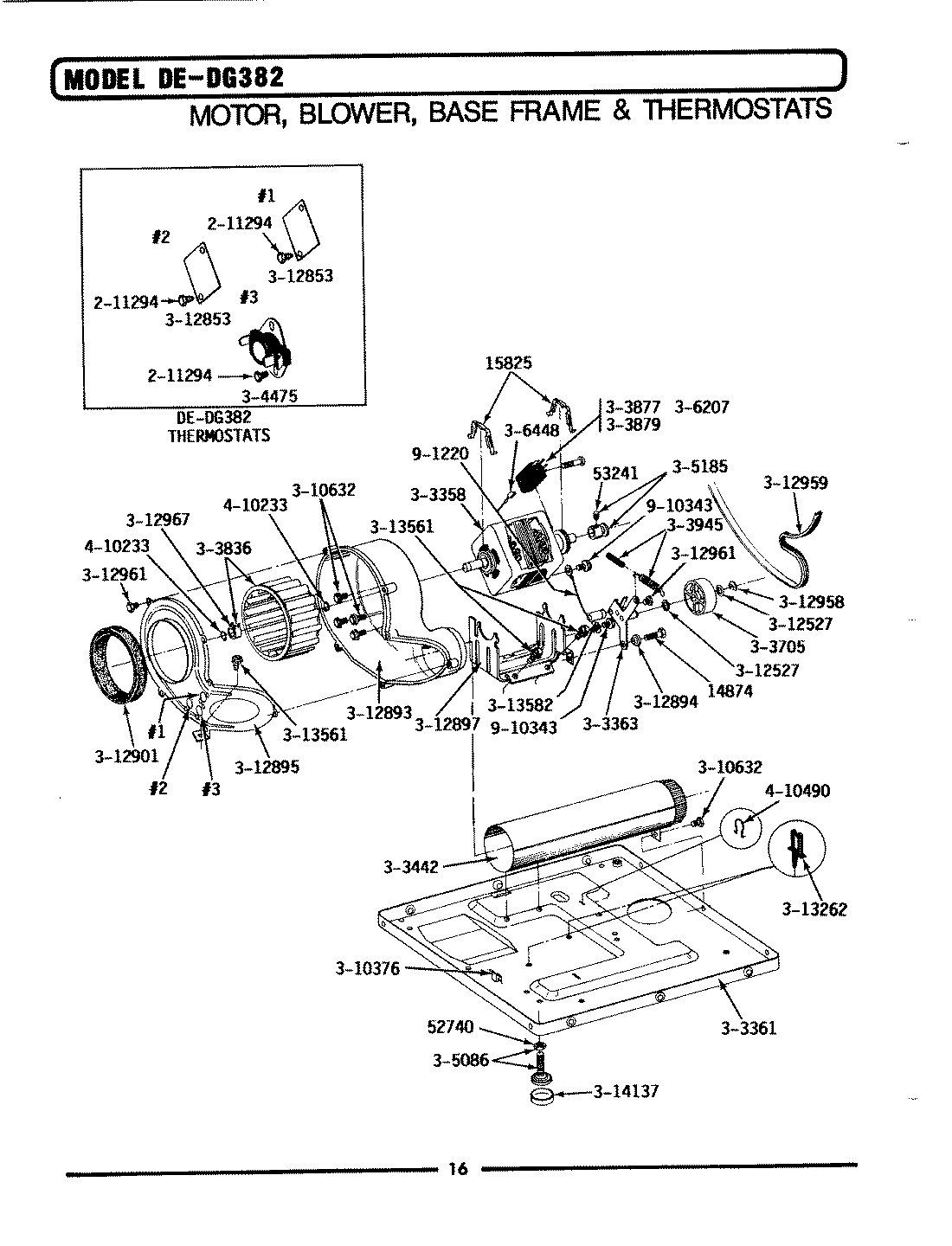

DG382 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
1	WPY014874 Whirlpool Screw
2	WPY015825 Whirlpool Motor Clip
3	WP62739 Whirlpool Nut
4	MAY Y053241
5	WP90767 Whirlpool Screw
6	W10410999 Whirlpool Dryer Drive Motor
7	MAY Y303361
8	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
9	MAY Y303442
10	WP6-3037050 Whirlpool Idler Pulley
11	Y303836 Whirlpool Dryer Blower Wheel
12	MAY Y303877
13	MAY Y303879
14	MAY Y303945
15	CYCLING TSTAT
16	W10176519 Whirlpool Leveling Feet
17	MAY Y305185
18	MAY 306207
19	MAY 306448
20	MAY Y310376
21	MAY Y310632
22	MAY Y312527
23	MAY Y312853
24	MAY Y312893
25	SLEEVE, IDLER ARM —-S
26	MAY Y312895
27	MAY 312897
28	WPY312901 Whirlpool Blow Seal
29	WP354987 Whirlpool C-Clip
30	WPY312959 Whirlpool Dryer Drum Belt
31	WPW10116751 Whirlpool Screw
32	WP312967 Whirlpool Clamp
33	MAY Y313262
34	MAY Y313561
35	WPW10116756 Whirlpool Spacer
36	WPY314137 Whirlpool Rubber Foot
37	WP9703438 Whirlpool Snap Retaining Ring
38	MAY 410490
39	MAY 901220
40	MAY 910343
