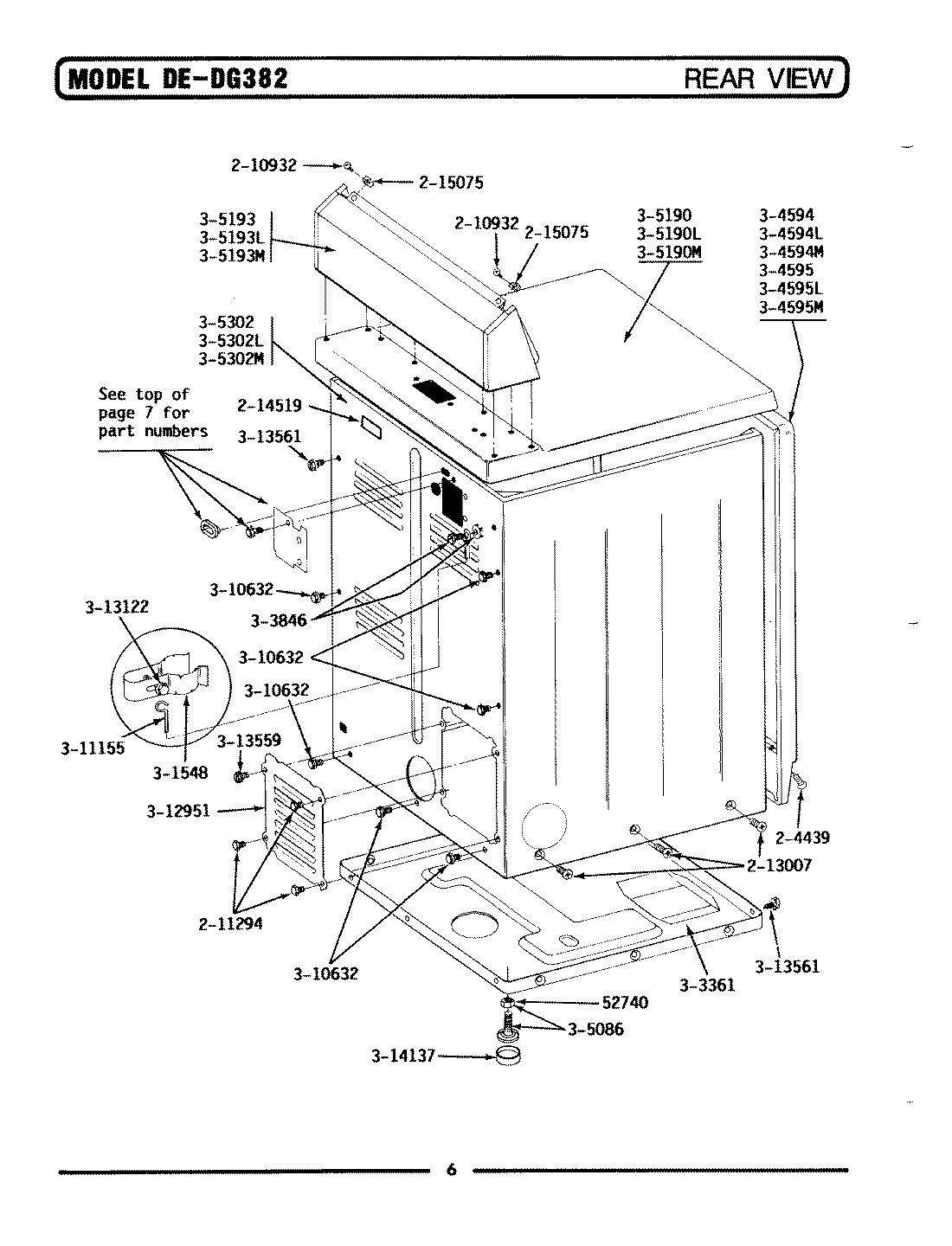

DG382 08 – REAR VIEW

DG382 08 – REAR VIEW

Written by

in

DG382 08 – REAR VIEW

Products

Position	Product
1	WP62739 Whirlpool Nut
2	MAY Y201808
3	SCREW & FSTNER ASSY (FT. PNL)
4	MAY 210932
5	WP90767 Whirlpool Screw
6	GROMMET
7	213007 Whirlpool Screw #12
8	INSTRUCTION LABEL
9	MAY 215075
10	MAY 301548
11	MAY 302521
12	MAY Y303361
13	MAY 303846
14	MAY Y304122
15	MAY 304594
18	W10176519 Whirlpool Leveling Feet
19	MAY Y305190
22	MAY Y305193
25	MAY 305302
28	MAY Y310632
29	WP311155 Whirlpool Wire Assembly
30	WPY311270 Whirlpool Washer TE
31	PART NOT USED
32	WP112432 Whirlpool Nut Assembly
33	PART NOT USED
34	SCREW, No.10-24 X 3/4 INCH—–O
35	PART NOT USED
36	MAY Y312905
37	MAY Y312951
38	MAY 313122
39	MAY Y313559
40	MAY Y313561
41	WPY314137 Whirlpool Rubber Foot
42	PART NOT USED
