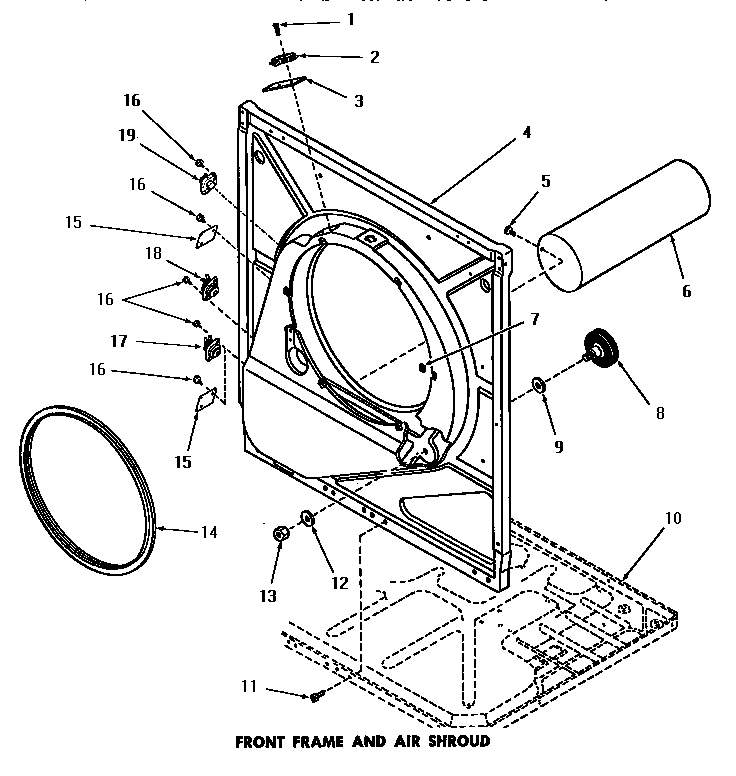

DG3860 15 – FRONT FRAME & AIR SHROUD

DG3860 15 – FRONT FRAME & AIR SHROUD

Written by

in

DG3860 15 – FRONT FRAME & AIR SHROUD

Products

Position	Product
1	MAY 51783
2	MAY Y51143
3	MAY 52112
4	MAY 51850
5	MAY 52150
6	MAY 51821
7	MAY 52865
8	MAY 53555
9	MAY 52123
10	SEE NOTE GROUND WIRE, GREEN
11	MAY 51784
12	MAY 52122
13	MAY 52124
14	MAY 51798
15	MAY 52550
16	WP3177991 Whirlpool Screw
17	MAY 54736
18	MAY 54737
19	MAY 53708
