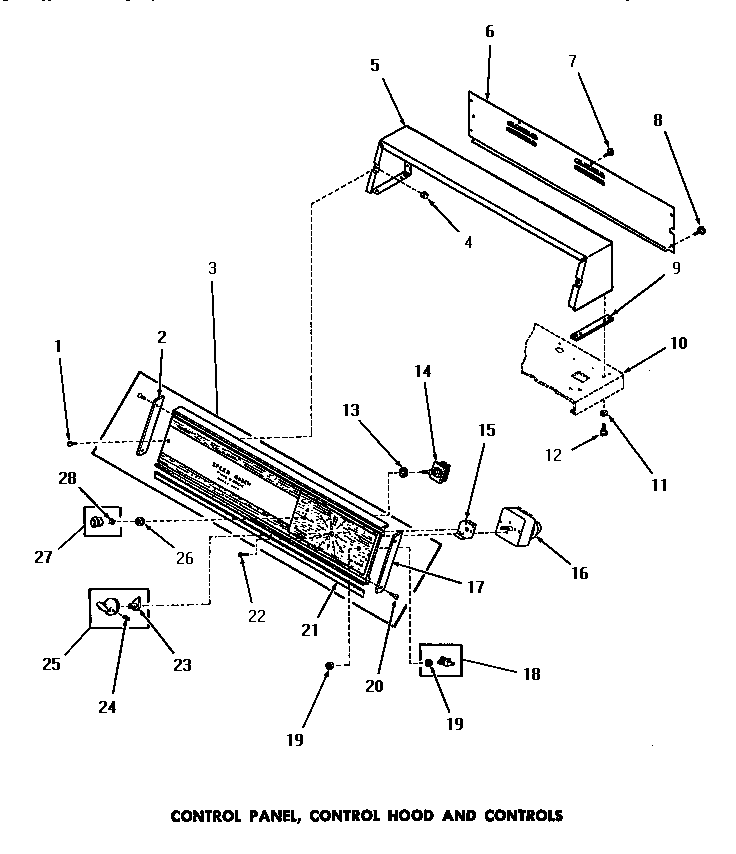

DG3861 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

DG3861 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Written by

in

DG3861 10 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

PositionProduct
1MAY 25232
2MAY 25072
4MAY 54038
5MAY 52530W
5MAY 52530H
5MAY 52530A
6MAY 52539GR
7WP3177991 Whirlpool Screw
8MAY 25724
9MAY 23028
10SEE NOTE GROUND WIRE, GREEN
11MAY 20493
12WP90767 Whirlpool Screw
13MAY 91176
14MAY 53380
15MAY 25966
16MAY 52610
17MAY 25073
18MAY 53768
19MAY 52947
20MAY 52864
21MAY Y0053880
22MAY Y0054441
23MAY 24857
24MAY 25285
25MAY 24858
26MAY 24205
27MAY 22245
28MAY 22244
