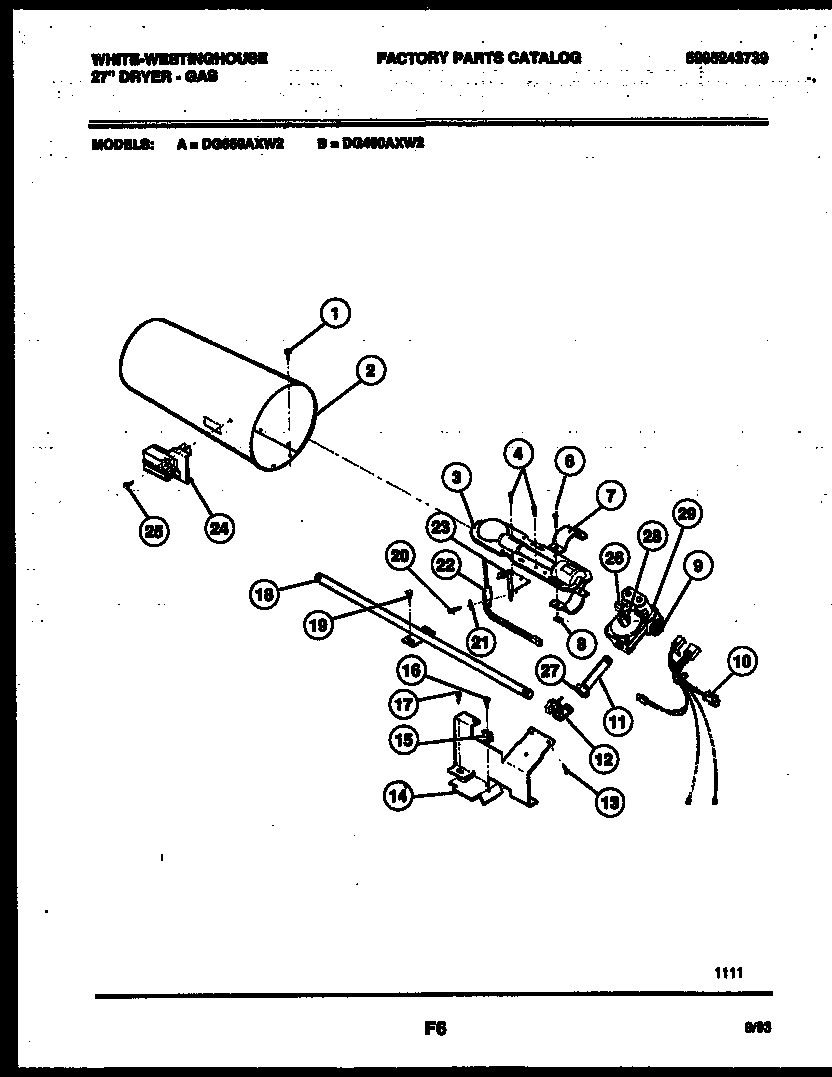

DG400AXD2 06 – BURNER, IGNITER AND VALVE

Products

Position	Product
2	TUBE ASSY BURNER
3	134264900 Frigidaire Burner
6	SCREW
7	WCI 5303281138
8	WCI 5303281148
9	WCI 5303281147
10	HARNESS
11	CONNECTION-UNION MALE
12	VALVE-ANGLE
13	131243800 Frigidaire Screw
14	WCI 5303281145
15	CLIP
17	SCREW
18	WCI 08015271
19	WCI 5303010202
20	WCI 5303281150
21	5300809968 Frigidaire Dishwasher P-1 Washer
22	5303937186 Frigidaire Dryer Flat Igniter Assembly
23	WCI 5303281149
24	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
25	SCREW
26A	WCI 5300171852
26	ORIFICE - NATURAL GAS
27	NUT-HEX UNION
28	5303931775 Frigidaire Dryer Coil Kit
